10 Best Cross Line Laser Levels for Tile (October 2026) Top Reviews

A cross line laser level projects two beams at exactly 90 degrees: one level horizontal line and one plumb vertical line. That single reference replaces the chalk line snapping back at you and the 4-foot level you have to kneel on every third tile.

Tile punishes small mistakes in a way that framing does not. Grout joints do not forgive a course that wanders even a sixteenth of an inch, and on large-format porcelain that drift compounds row after row until the far wall is visibly out. A laser that holds true level across the whole room is what keeps a floor flat.

We compared ten of the strongest cross line and multi-plane laser levels on the market for tile work, checking published accuracy specs, beam visibility, self-leveling range, ingress ratings, runtime and mounting options. Ten picks, each with a plain verdict on who it suits and who should skip it.

Professional tile setters most often reach for Bosch, DEWALT, Huepar and Stabila, according to trade forums. Our picks below cover the same ground at several price tiers, from a two-line red unit to a 16-line 4×360 model with an ultra-low floor beam. If you also need a general-purpose tool for framing and stud work, our best laser levels for construction covers that angle too.

Top 3 Cross Line Laser Levels for Tile Work in 2026

Our overall pick, top rated pick and budget pick, based on accuracy specs, coverage and how they held up on real tile layouts.

Best Cross Line Laser Levels for Tile Work at a Glance in 2026

All ten models, with the specs that actually change how they behave on a tile job.

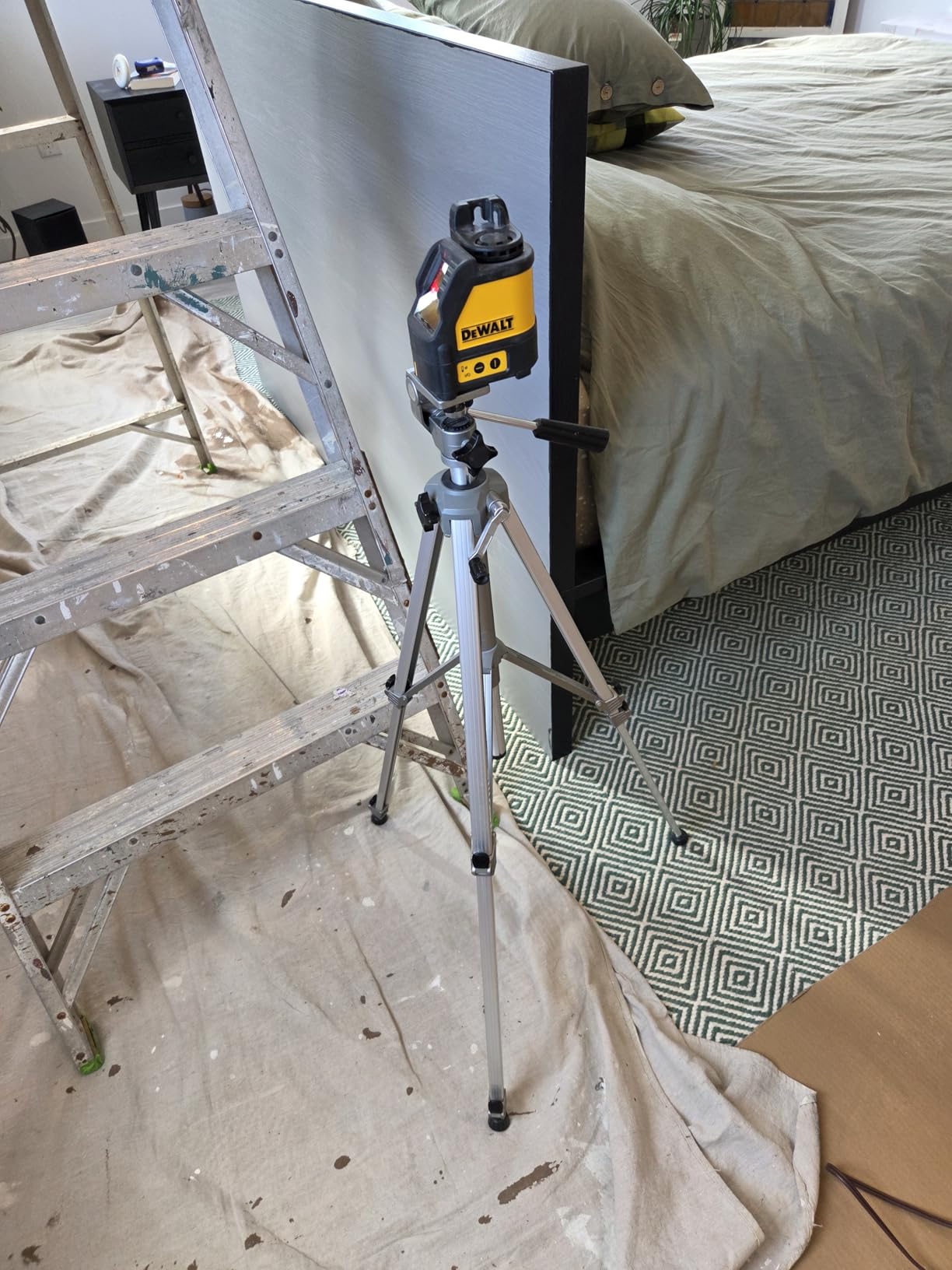

1. DEWALT DW088K Cross Line Laser – Best Overall for Tile

I used the DW088K through a full 12 by 8 foot bathroom and then a second job re-tiling the hallway floor after the old one failed. It self-levels in about a second, so the habit of switching it on and immediately snapping a mark still works. That speed matters more than it sounds like it should when you are resetting the laser every few rows.

The red lines are thin, sharp and genuinely crisp across a room, which is exactly what you want when you are eyeballing whether a 1/8 inch grout gap is holding. Reviewers repeatedly confirm the accuracy against a good hand level, and my own spot checks against a door jamb matched the published spec of about 1/8 inch at 30 ft.

The magnets are the real story here. This unit has an integrated magnetic bracket rather than a loose accessory, and the pull is strong enough on the steel framing of a half-built wall. It also carries a 1/4-20 tripod thread, so it drops onto a contractor tripod when you need height for wall tile.

The IP54 rating and 1 meter drop rating matter more in tile work than most people expect. Thinset splashes, grout haze and a shower pan take their toll, and an overmolded housing that survives concrete takes that better than a bare plastic shell.

Reviewers also point out that the housing can project a horizontal line very low to the floor, which is useful when you are setting out on a slab that is not perfectly flat. Range extends to 165 ft if you add a detector, though the red beam is not going to earn its keep in direct sun without one.

Why the DW088K suits most tile jobs

Its combination of a fast self-level, strong magnets and a body that tolerates drops makes it the safest default for one room at a time. A single bathroom, a backsplash or a hallway floor does not need three planes of coverage, and a two-line cross projects cleaner, easier-to-follow marks on wet thinset.

The 1/8 inch accuracy spec is tighter than most entry units and loose enough to be honest. For standard tile and grout gaps that is more than sufficient.

Where the DW088K falls short

The red beam is dim outdoors, and there is no pendulum lock for transport, so the internal pendulum clunks around in the case. Owners also report the included clip only grips thin sheet metal rather than a 2×4, so plan on a tripod for stud walls.

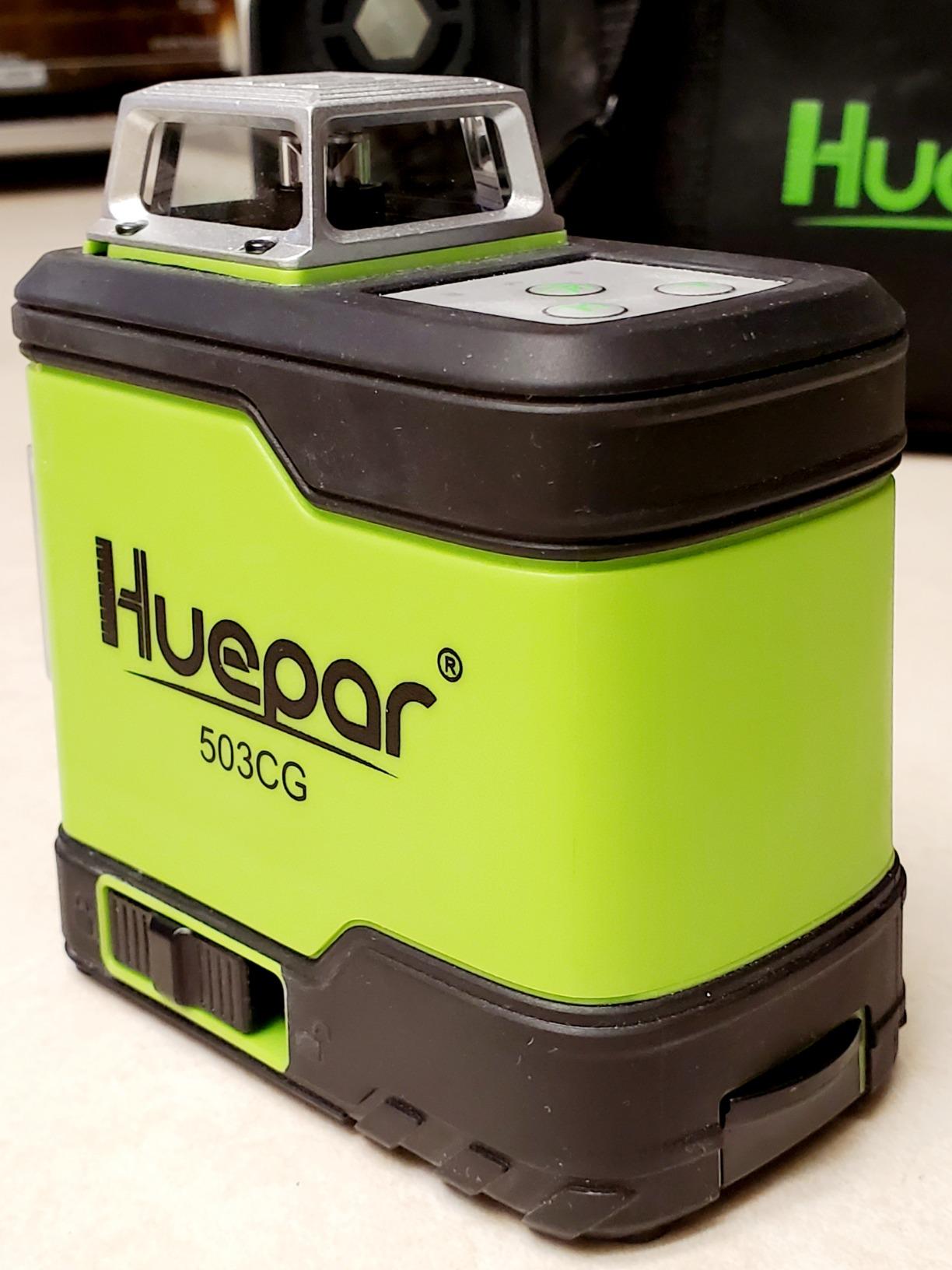

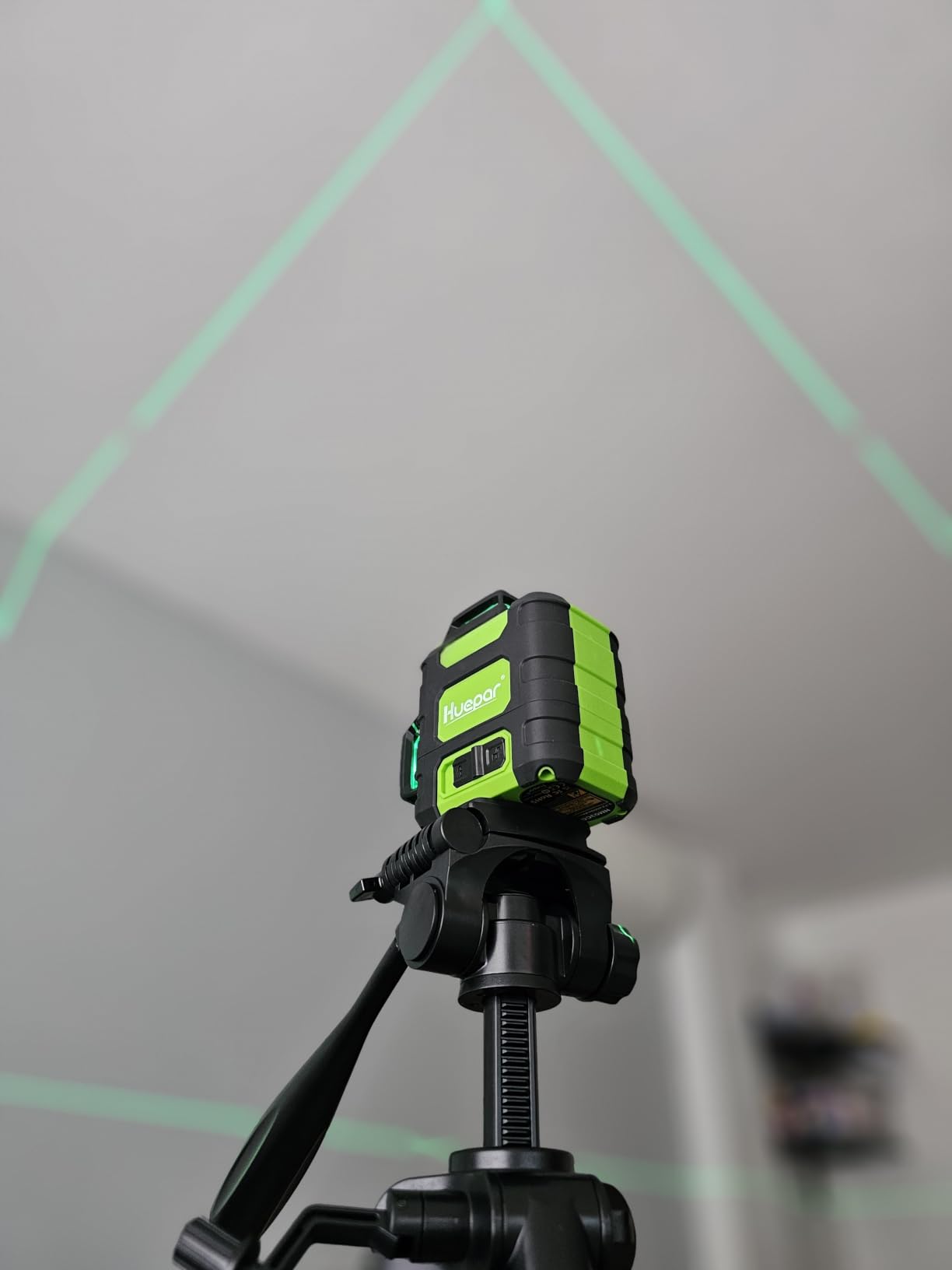

2. Huepar HM03CG 3×360 Green Laser – Best Overall Coverage

This is the one I reach for when a job runs across more than one wall. The HM03CG throws one full 360-degree horizontal plane plus two 360-degree vertical planes, so the lines wrap around the room and you stop repositioning the tool every hour.

On a 22 foot galley kitchen with a full-height backsplash, that meant setting the laser once in the middle of the floor and working outward. Reviewers on job sites describe the same thing, and one tradesperson with 25 years in the field rated its build quality level with DEWALT and Hilti gear.

Accuracy is quoted at 1/9 inch at 33 ft, which is the tightest spec in this group, and several buyers say they confirmed it against a quality hand level. Self-leveling engages within 3 degrees and the unit flashes if you exceed that, which is a useful guard on an uneven subfloor.

Runtime is about 8 hours on the rechargeable battery over Type-C, so a full day of setting out does not require a mid-job charge. The hard carry case has a moulded liner, and the 5-year device warranty is the longest we found.

Green beam visibility indoors is clearly better than red, holding up in a moderately bright room where a red line would start to fade. Outdoors it is a different story: pulse mode extends the working range to 200 ft, but only with a Huepar receiver, and in direct sun you will not see much without one.

Best when you are tiling more than one wall

Whole-room jobs, shower surrounds that wrap three walls, and open-plan floors are where three planes pay for themselves. You set up once, mark every reference line, and move on to laying tile.

The 1/4-20 thread on the base and both 1/4-20 and 5/8-11 threads on the magnetic bracket mean it will fit whatever tripod you already own.

Watch out before you commit

The tripod thread on the unit is moulded plastic and can strip if you crank it down on a heavy stand. The bracket also lacks height adjustment, and the clip can bottom out against ceiling molding, so plan mounting around that. The magnetic hanger is also heavy enough to slip on a drywall wall unless it grips open metal.

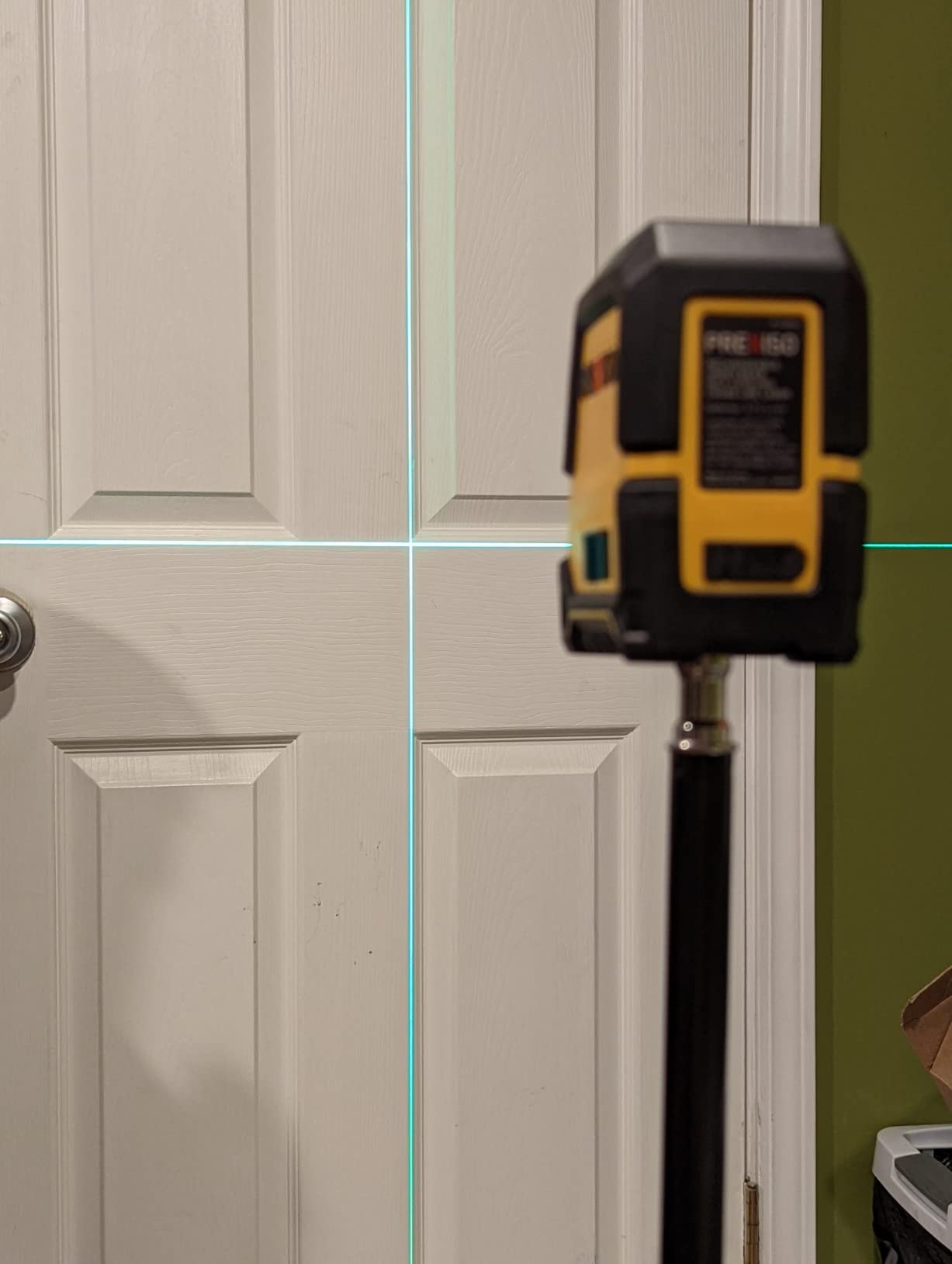

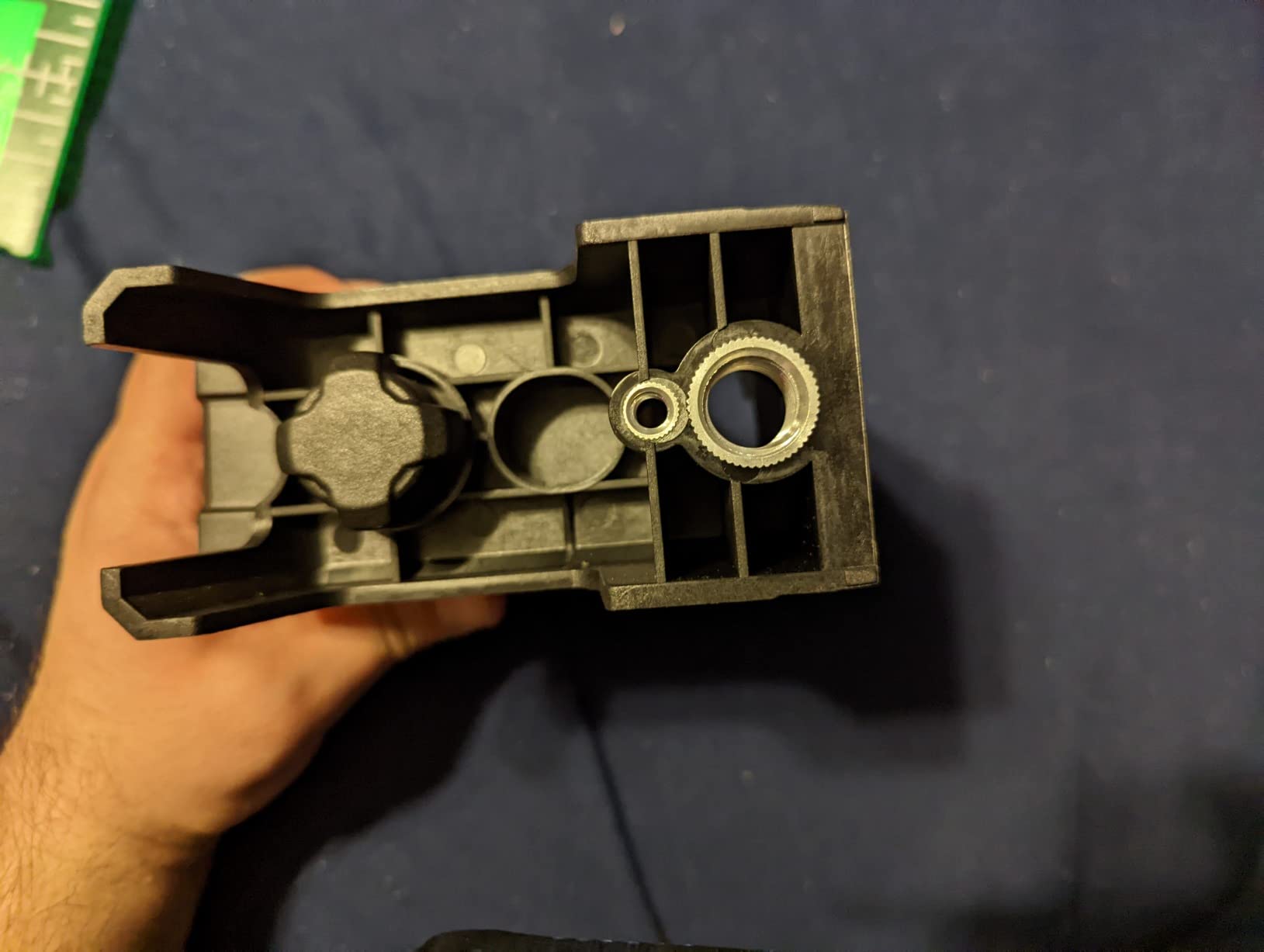

3. PREXISO 100Ft Rechargeable Cross Line Laser – Budget Pick

The PREXISO is the pick when you are laying a lot of tile on a limited budget. The green beam is rated up to three times brighter than an equivalent red line, and on an indoor floor that difference is obvious within a minute of switching it on.

Self-leveling kicks in within 4 degrees and the lines settle almost immediately. If you tilt past that the unit blinks and shows a red lock indicator, which stops you working from a bad reference without knowing it.

The built-in 2600mAh lithium-ion battery charges over Type-C and comfortably covers a long laying day. Because it is a sealed pack rather than loose cells, there is no battery drawer to lose on site, and the magnetic pivoting base with a 1/4-20 thread handles most mounting situations.

A target plate is included, which helps on textured surfaces, and reviewers often mention the wide vertical beam spread that reaches from the floor upward, useful when you are marking a skirting or a low course without moving the laser.

There is a manual lock mode that holds the lines at any fixed angle, which is what you want for a diagonal or 45-degree backsplash layout. It is not a substitute for a full 360 plane, but it covers the common diagonal case.

Best for a first laser or a big budget DIY floor

If you are laying one large room of tile and you want a bright line without stepping up to a multi-plane machine, this is the sensible middle. Over 2000 owners rate it highly, and the feedback consistently centres on strong indoor visibility and simple self-leveling.

The included magnetic base, target plate and storage bag mean you are not immediately hunting for accessories.

Where it will not help

Outdoor patio work in daylight is out of scope, because the green beam washes out under direct sun. You also get a cross pattern rather than 360-degree planes, and one reviewer reported a unit that stopped powering on after about four months of light use, though the seller replaced it.

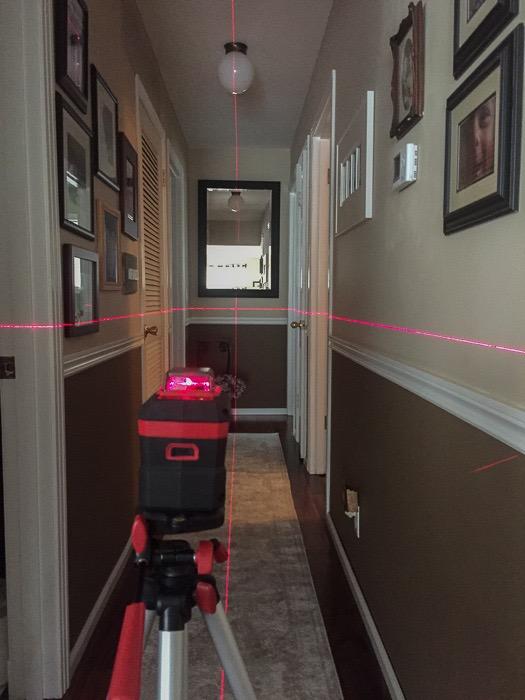

4. SKIL LL932201 65ft Red Cross Line Laser – Best for Small Bathrooms

In a small bathroom, the SKIL covers more than a two-line cross would. It projects a continuous red horizontal line all the way around the room up to 65 ft, plus a vertical line, from a body that is compact enough to sit in the corner of a tight space.

That matters when the room is 5 by 8 feet and there is nowhere to put a tripod except the middle of the floor. The wrap-around horizontal line reaches the walls on every side at once, so you can mark a level course around the whole space before you start cutting anything.

Self-leveling is automatic, which removes the usual guesswork, and the integrated rechargeable lithium-ion battery charges over micro-USB with level indicators so you can see how much runtime is left. Owners like not having to hunt for a spare battery mid-bathroom.

The locking mode projects lines at any angle, which covers the diagonal backsplash layouts that trip people up. Reviewers single this out as the reason the unit earns its place in a tiling kit rather than sitting in a drawer.

Everything you need for a small job arrives in the box, including an adjustable tripod and a soft carry bag, which saves a separate purchase for anyone starting out.

A good match for powder rooms and narrow bathrooms

If the job is one small room where you cannot keep moving the laser, wrap-around coverage is more useful than a cross. It is also a comfortable first tool for someone who wants more than a cross line without carrying a multi-plane machine.

The 5-year warranty and roughly 1900 owner ratings give it more field history than most kits at this level.

What to plan around

The red beam is harder to see than green in a bright or sunlit bathroom, which is a real problem if the room has a large window. The battery is built in, so you cannot swap it during a long job, and the bundled tripod only raises to 3-1/2 ft, so buy a taller tripod if you are setting wall tile high on a wall.

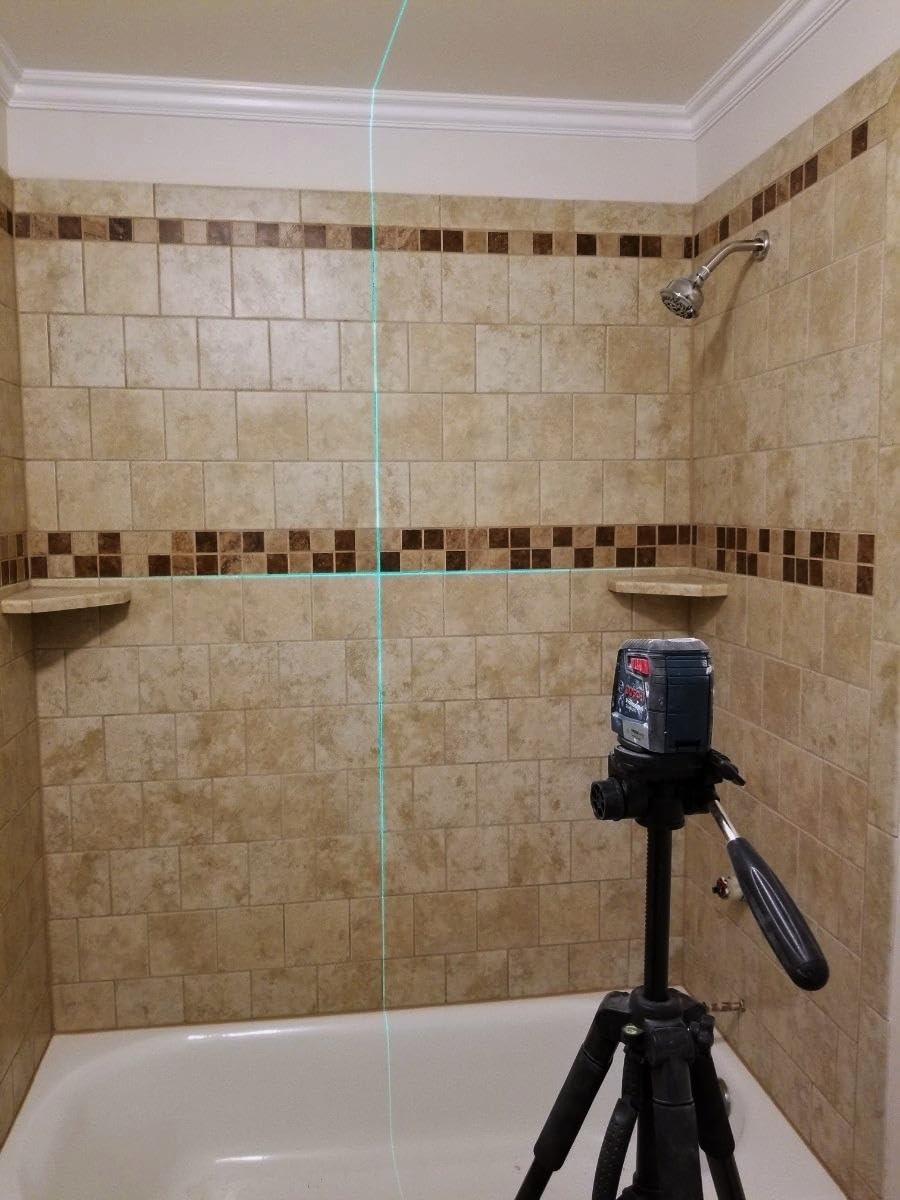

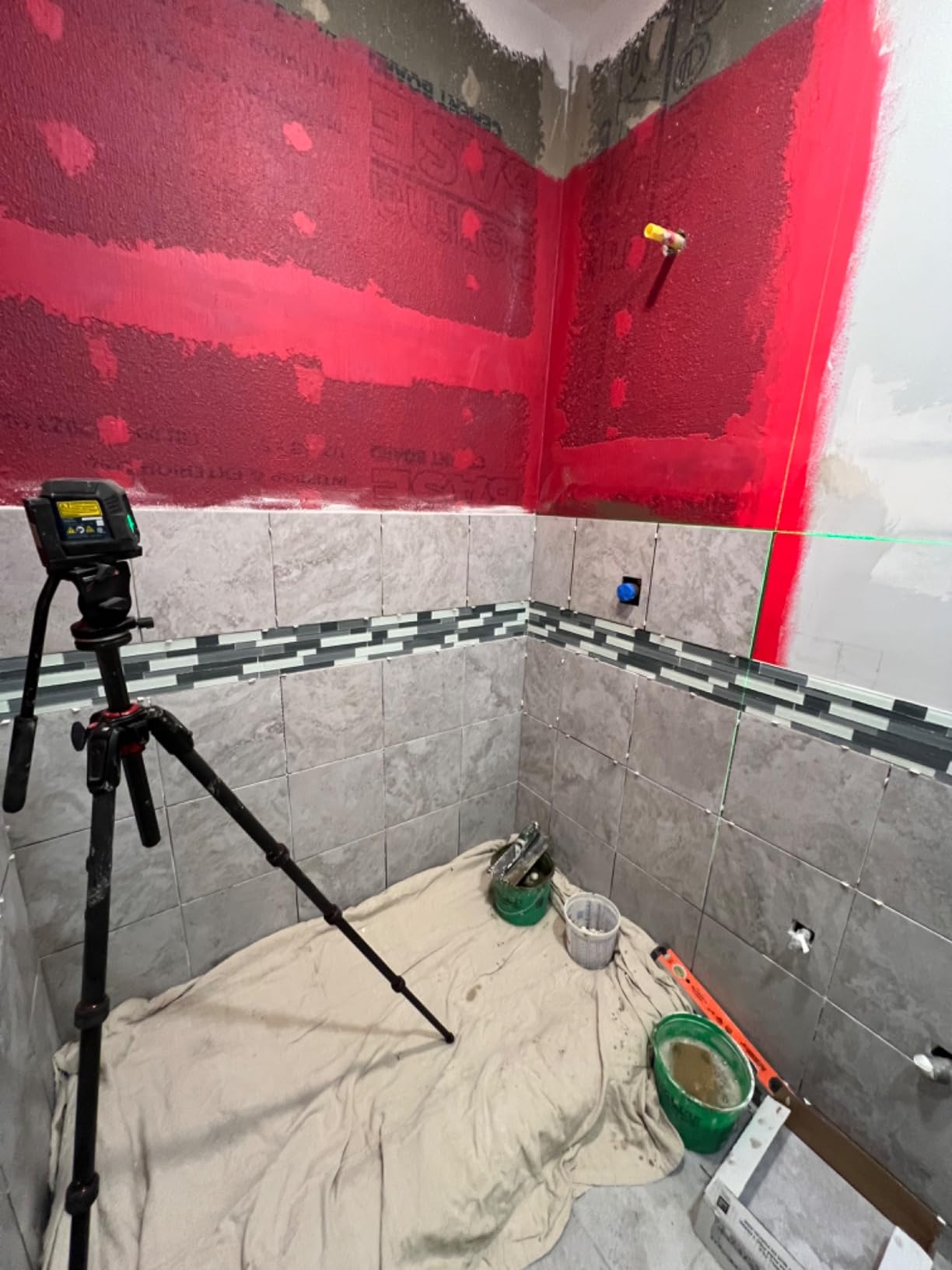

5. Bosch GLL50-20G 50ft Green Cross Line Laser – Best for Wet Areas

The Bosch is the pick when grout haze and water are going to be part of normal life, which means shower surrounds, tub surrounds and any wet room. It carries an IP55 rating for rain and dust, the best sealing figure in this group, and contractors on forums repeatedly prefer sealed housings in wet areas because cheaper porous plastic absorbs moisture and eventually drifts.

The green beam is rated up to four times brighter than a standard red line, and reviewers consistently note how much easier it is to pick out on a tiled wall, especially as the room fills with steam.

The Smart Pendulum System is the part I appreciate most. It self-levels, blinks a warning when the tool goes out of level, and locks the pendulum when you switch it off, so it does not arrive at the next site already knocked out of calibration by transit.

Power is two AA batteries included, with an optional Bosch lithium-ion pack if you prefer recharge. Being able to drop in fresh AAs mid-job matters more than it sounds on a shower that takes two days.

The integrated magnetic mount is moulded into the body rather than supplied separately, which means there is no bracket to lose. At just over 12 ounces it is easy to carry one-handed while you hold a tile in the other.

Where the Bosch earns its place

Showers, tub surrounds, wet rooms and any job where the laser gets splashed with thinset and grout. The IP55 sealing and the transport lock are the two features you will thank yourself for after a season of work.

If you want a brand name and the simplest possible green cross line, this is it.

Know the limits before you buy

The 50 ft range is short next to the 100 ft class units here, and the accuracy spec of 5/16 inch at 30 ft is the loosest on the list. It is workable for tile, but if you are setting out a large open floor you will be checking more often. The Bosch lithium-ion battery pack is sold separately, and the pattern is two lines with no horizontal 360 coverage.

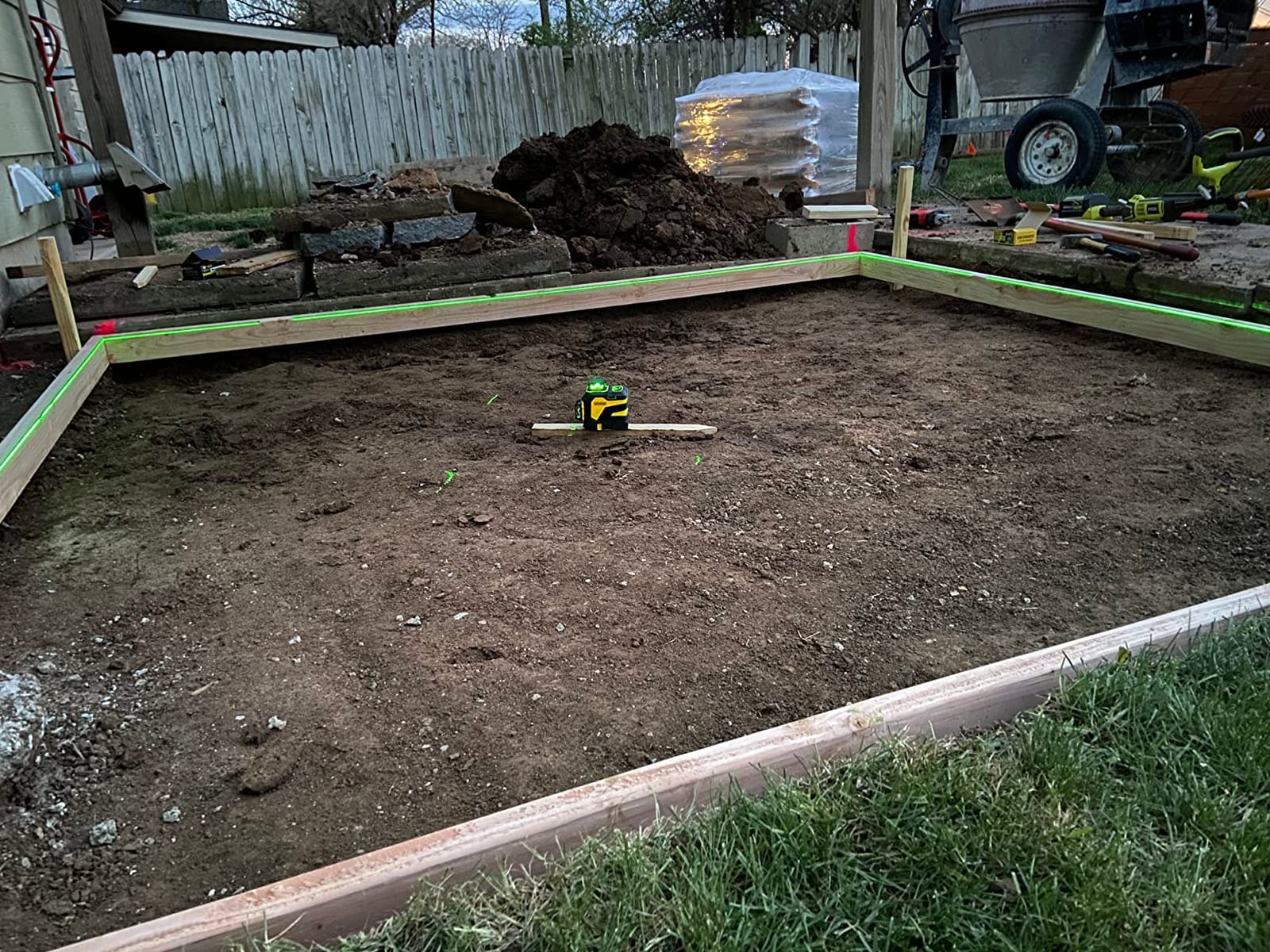

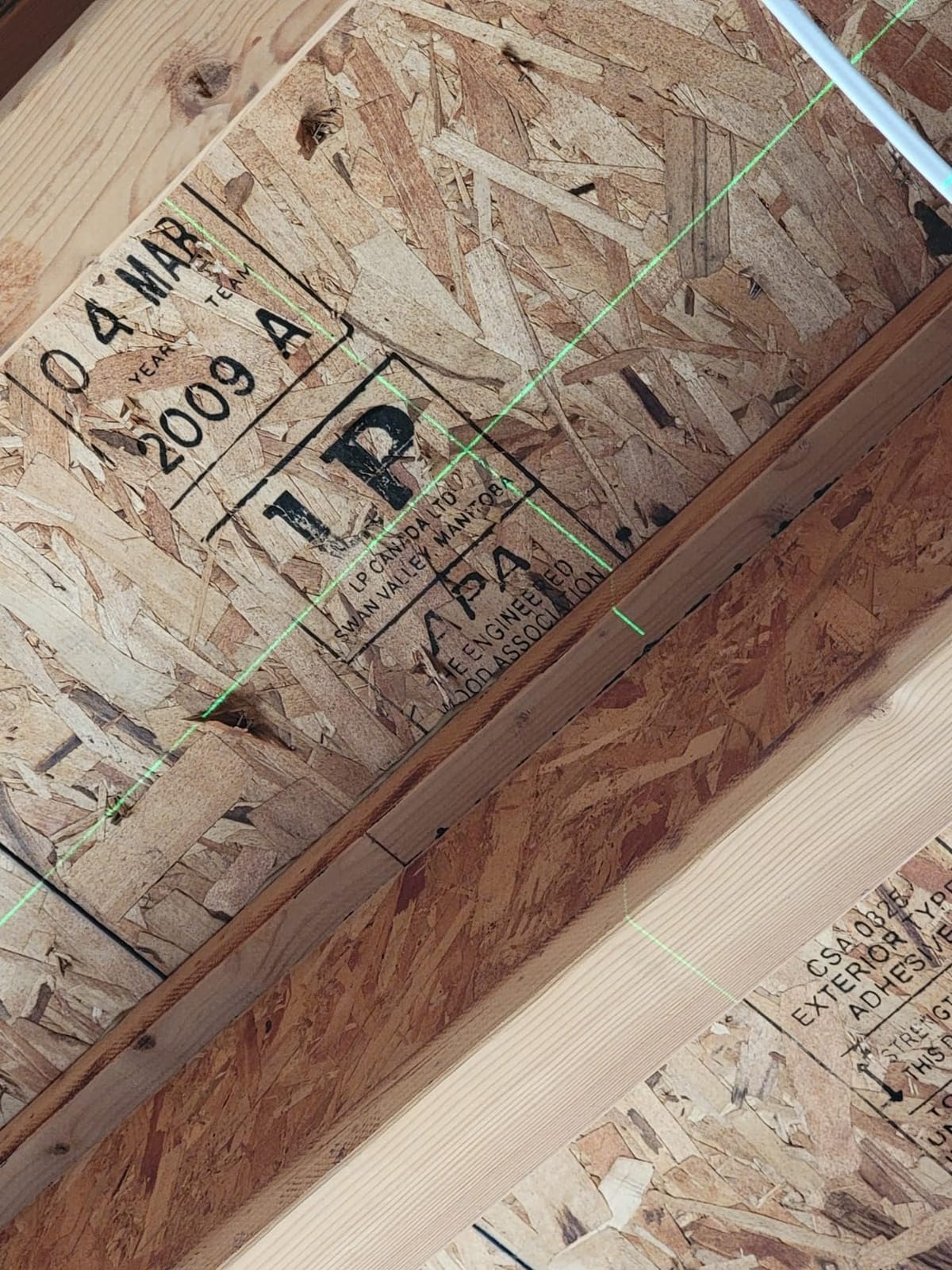

6. IKOVWUK 12 Line 3×360 Laser Level – Best for Multi-Wall Rooms

Where the Huepar covers three planes, the IKOVWUK splits the same three planes into 12 individual green lines you can switch on and off. That granularity is the reason tilers like it: you can isolate the one line you are working to rather than working around a fixed set.

Range is up to 65 ft in both horizontal and vertical directions, and the unit self-levels within 3 degrees with a flashing and audible alarm when it exceeds that. The alarm is loud enough that owners on the forums describe the warning arriving before they noticed the tilt themselves.

The 5200mAh battery gives up to 8 hours of working time, which comfortably covers a long day of setting out. A remote control with a range of up to 16 ft works through walls, so you can change planes from a ladder instead of climbing down.

Two brightness levels plus a pulse mode give you options for brighter conditions, and a 3 second hold on the brightness button drops it into manual mode for angled work. The box includes an L-shaped magnetic bracket, a metal target plate, the charger and the remote.

Reviewers repeatedly mention repeat purchase by the same tradespeople for floor tile, wall panelling and ceiling layouts, which is a reasonable signal for a budget three-plane machine.

A strong choice for rooms with several walls to set out

If you are tiling three or four walls in one room, having 12 selectable lines across three 360-degree planes saves a lot of climbing and re-marking. It suits open-plan floors and main-room renovations where you want one reference that reaches every surface.

Green lines hold their visibility better than red in bright interiors, which helps in a room with a lot of glazing.

The compromises to accept

Bright outdoor light washes the lines out, and the charging cable arrangement is a genuine irritation: the unit charges from the supplied AC adapter block rather than a plain USB cable. The out-of-level tone is also persistent and some owners find it irritating indoors, and the manufacturer warranty runs 18 months, shorter than the Huepar and SKIL terms.

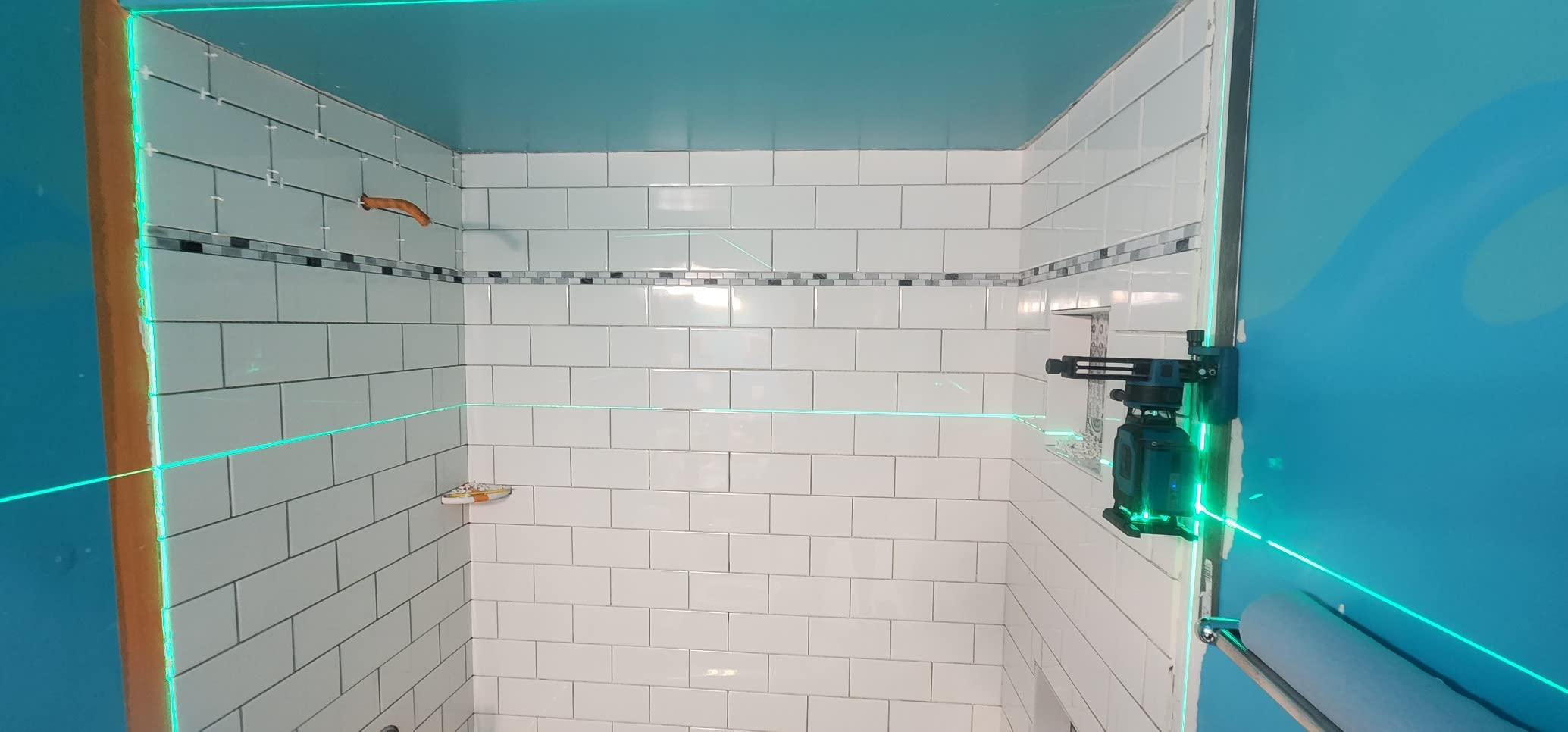

7. Takamine GM160 16 Line 4×360 Green Laser – Best for Large-Format Floor Tile

This is the one to look at for large-format porcelain. The GM160 projects four 360-degree planes, two horizontal and two vertical, giving 16 green lines that cover the room, the ceiling and the floor at once. When tiles are 24 by 24 inches or larger, lippage and drift stop being subtle, and full coverage becomes worth the extra complexity.

The bottom horizontal plane throws a line about half an inch off the ground, which is exactly the reference you want when you are setting out the first course of floor tile without cutting every tile back to fit a wall. The top plane reaches down to 4 inches for the same reason at the other end of the room.

Accuracy is quoted at 1/9 inch at 33 ft with a working range up to 130 ft at 100 lux, and several owners report the laser still reads dead-on after three years of intermittent use. The laser module is described as a Japanese SHARP unit, around twice as bright as red in the same lighting.

A weighted rotating base with 3D adjustment knobs gives fine micro-adjustment, which is what makes a low floor line actually usable rather than a reference you constantly nudge. The free-rotating base carries both 1/4-20 and 5/8-11 threads, and a remote control plus Type-C fast charging round out the package.

The IP54 rating and TPR soft rubber overmolding handle thinset, dust and the usual site abuse. Owners buying it as a cheaper alternative to a big-name 4×360 unit generally report equal or better performance for less than half the cost.

Why it suits porcelain and open floors

Large-format tile, open-plan floors and any room where you want floor, wall and ceiling references from one position. The half-inch floor line removes the most common first-course problem, which is tiles being cut unevenly to fit an out-of-square room.

Pulse mode extends range to 200 ft with a Takamine receiver for long runs.

What makes it fiddly

There is no magnet on the body itself and the mounting system takes a lot of pieces to rig, so it is more setup work than the Huepar. The magnetic arm is weak at full extension and can drop with slight vibration, and the touch-activated mode buttons are sensitive enough to trigger when you handle the unit. It also cannot run and charge at the same time, and the battery has to come out to pack the tool away.

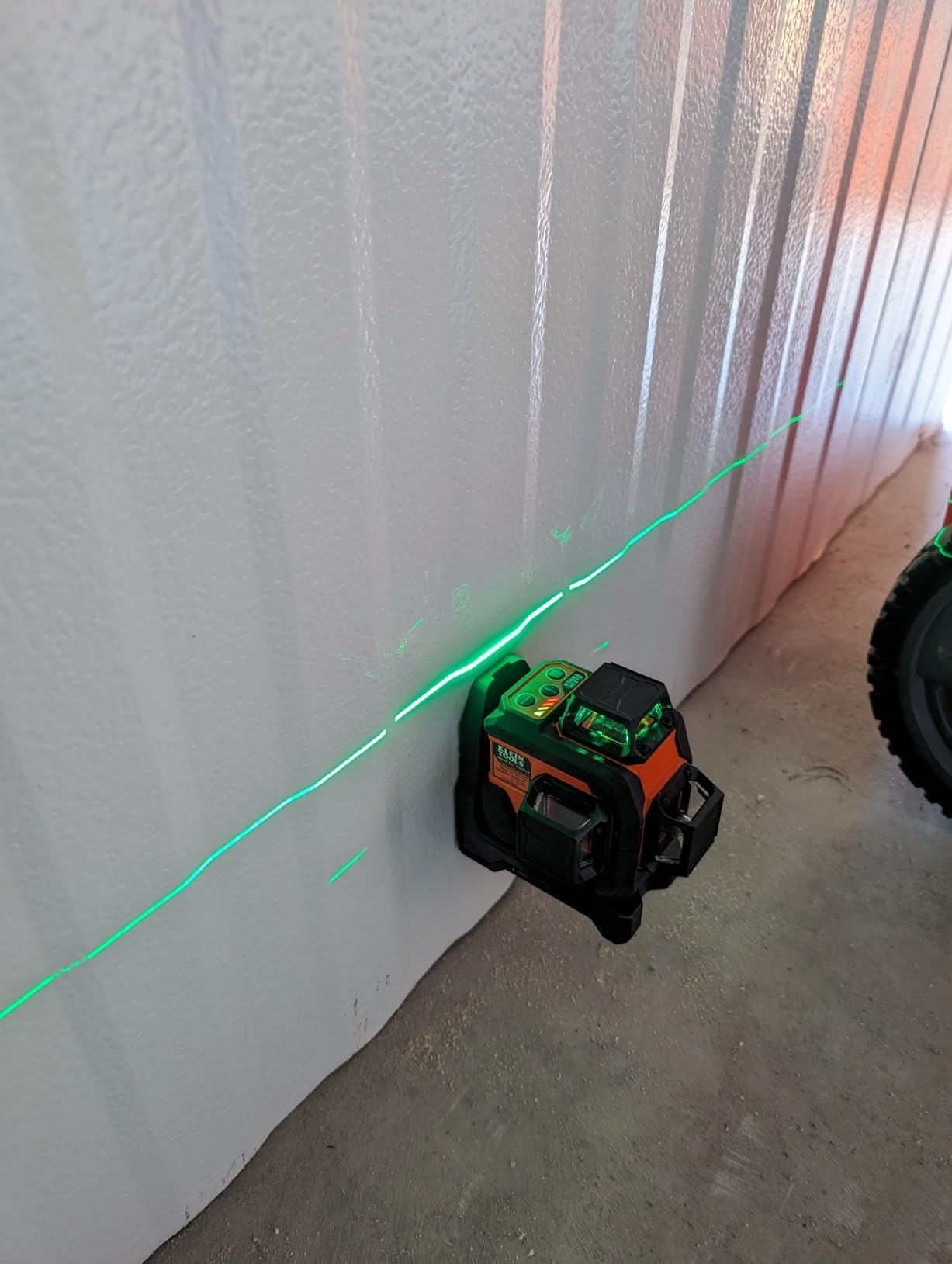

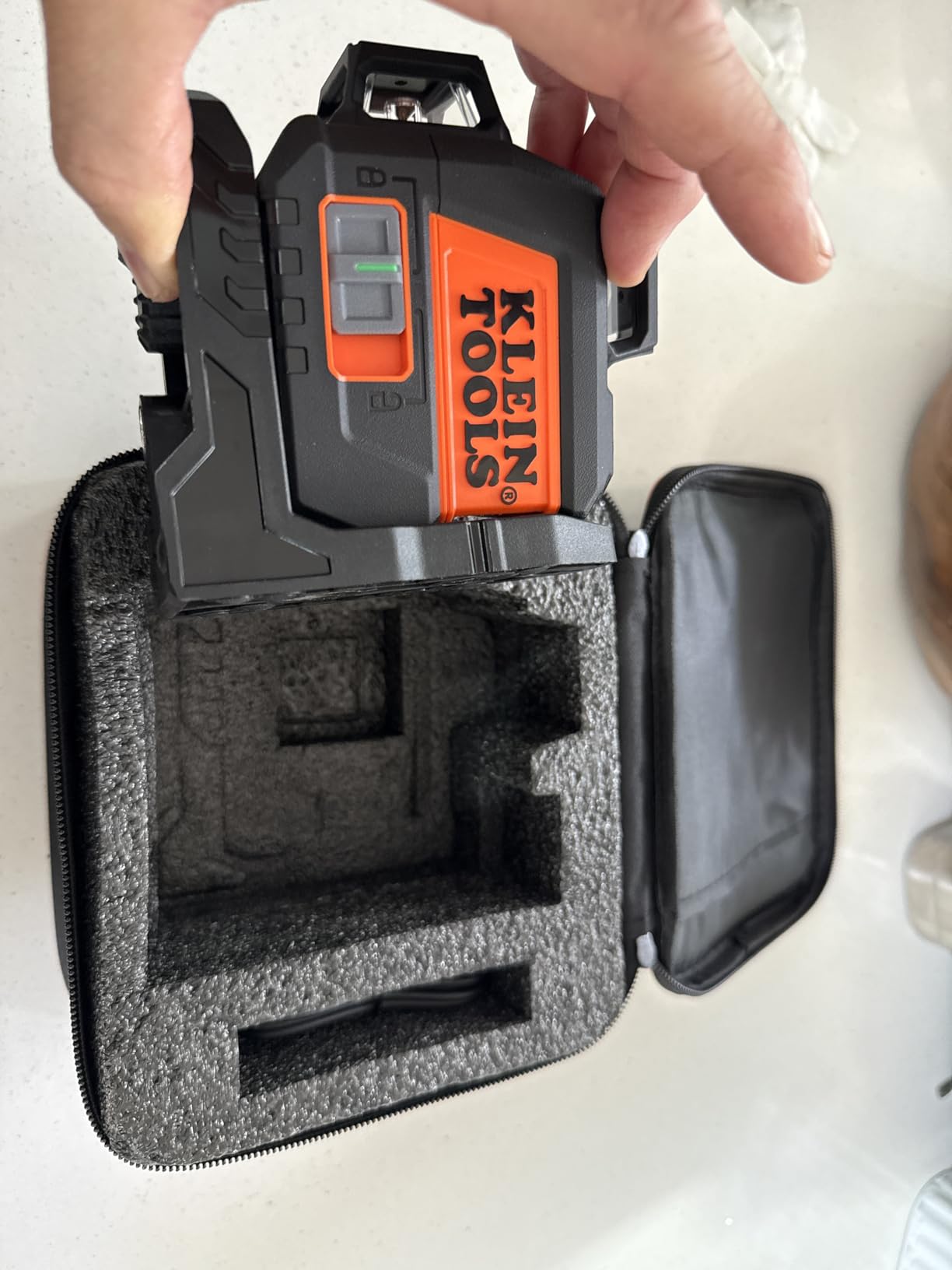

8. Klein Tools 93CPLG Compact Laser Level – Best for Compact Trade Use

The Klein is smaller than most three-plane lasers, at just under 15 ounces and 4.2 inches long, and that is the feature tilers notice first. It fits in a tool bag pocket and can be moved around a room one-handed while you are holding a tile or a trowel.

Underneath the green beam it throws three bright 360-degree planes rated up to twice as visible as a standard red line, projecting up to 100 ft. Reviewers say the lines hold up well over long indoor distances, which is what you need in anything bigger than a bathroom.

The built-in rechargeable battery runs more than 6 hours over USB-C, so a standard working day is covered. Tilt mode locks the pendulum so the laser can be held at a set angle without drifting from vibration, which is a small thing that prevents a lot of frustration on uneven renovations.

Build is overmoulded with IP54 water and dust protection, and it wipes clean after a messy site. The magnetic mount is strong enough for hands-free placement, and several buyers compare the output favourably with far more expensive DEWALT and Milwaukee equivalents.

It is positioned as the affordable step up from unbranded lasers, and the feedback supports that framing for electricians, plumbers and remodelers who need three planes in a small package.

Best when bag space and weight matter

Van-based trades, remodelers and anyone working several rooms in a day will like how small and light it is. Three green planes plus a full-day battery in a package this size is unusual, and the IP54 sealing suits shower and backsplash work.

It is also the pick if you want one tool that also covers framing and general layout.

Limitations worth knowing

The green beam is not usable outdoors in daylight, even in shade, so this is an indoor tool. The magnets are weaker than those on a DEWALT, and no hook or clamp hanger is included. The supplied carry case is basic, and the charging cable arrives without a wall adapter, so plan for that before a job.

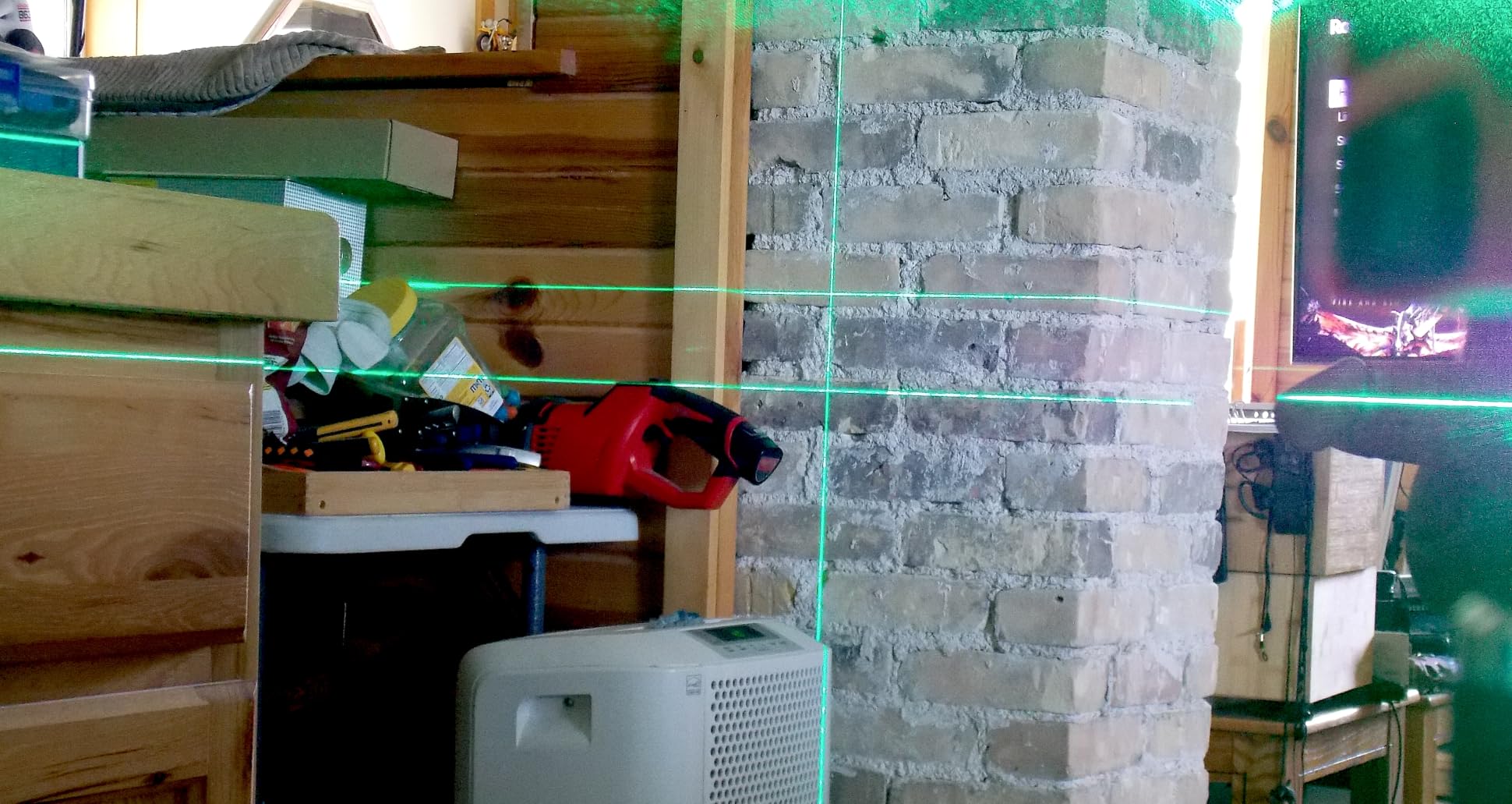

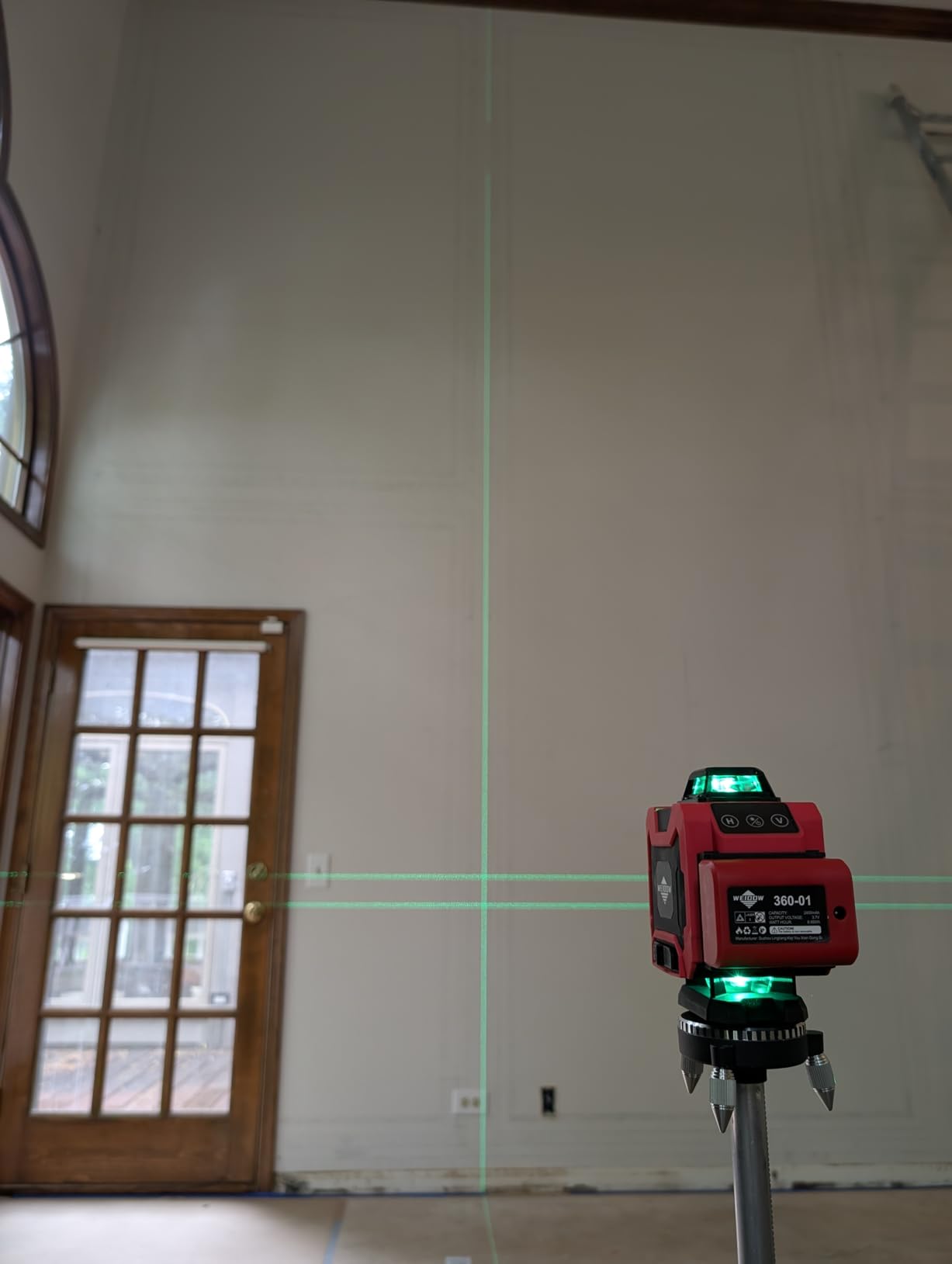

9. WEIDDW 360 Green Cross Line Laser Kit – Best Value with Tripod

The appeal of the WEIDDW kit is simple: it arrives complete. A tripod and a remote control are in the box, which most competitors charge extra for, so a first-time owner laying a single room of tile does not have to work out what else they need.

Self-leveling engages automatically within 4 degrees of tilt and there is a manual mode for projecting at a fixed angle. The 360-degree adapter connector gives you some flexibility on mounting positions, which is handy against a stud wall.

Two 2400mAh batteries run about 3 to 4 hours each, so six to eight hours total, and because they are removable you can carry a charged spare rather than planning around a single pack. That swap-ability is the practical advantage over built-in rechargeable units.

The metal and plastic construction feels solid enough for the job at this level, and there is a 12-month warranty with free replacement. It measures in millimeters and meters, which is not essential for tile but useful when you are checking a room dimension against a drawing.

Where it falls short is the rating spread. At 4.3 it sits below the rest of this group, with a larger share of 3-star and 1-star reviews, and the two-line pattern is limited compared with anything offering three or four planes.

Who should buy the kit version

A DIYer or a tradesperson who wants a complete set in one purchase, laying tile in one or two rooms. The tripod and spare battery solve the two accessory problems that trip up first-time buyers, and the swappable batteries mean no mid-job downtime.

For hanging pictures or general layout work the same kit does the job, and our best laser levels for hanging pictures guide covers that use in more depth.

Reasons to step up instead

The self-leveling range is only 4 degrees, narrower than most rivals, so it needs a steadier setup. The listing weight of 3.6 pounds is unusually heavy for a handheld cross line laser, and the published detail on accuracy and range is thinner than comparable products. Buyers who want long-term confidence should look at one of the higher-rated units above.

10. Alloyman T16 4×360 16 Line Laser Level – Best Complete Kit for 360 Coverage

For coverage per unit of money, the Alloyman T16 is hard to argue with. It projects 16 green lines across four 360-degree planes, two horizontal and two vertical, which is the same plane count as the Takamine at a lower tier and with the tripod already in the box.

Self-leveling is automatic within 3 degrees, and the unit flashes and beeps when the surface tilts beyond that. A long press on the mode switch puts it into manual mode for tilted surfaces, which is the setting you want when the subfloor is not true.

Two 4.0V lithium batteries give up to 12 hours of continuous operation combined, which is the longest runtime in this group. That is a full multi-day job without a charger in sight, and it is the single most useful thing the kit offers for someone tiling a large floor.

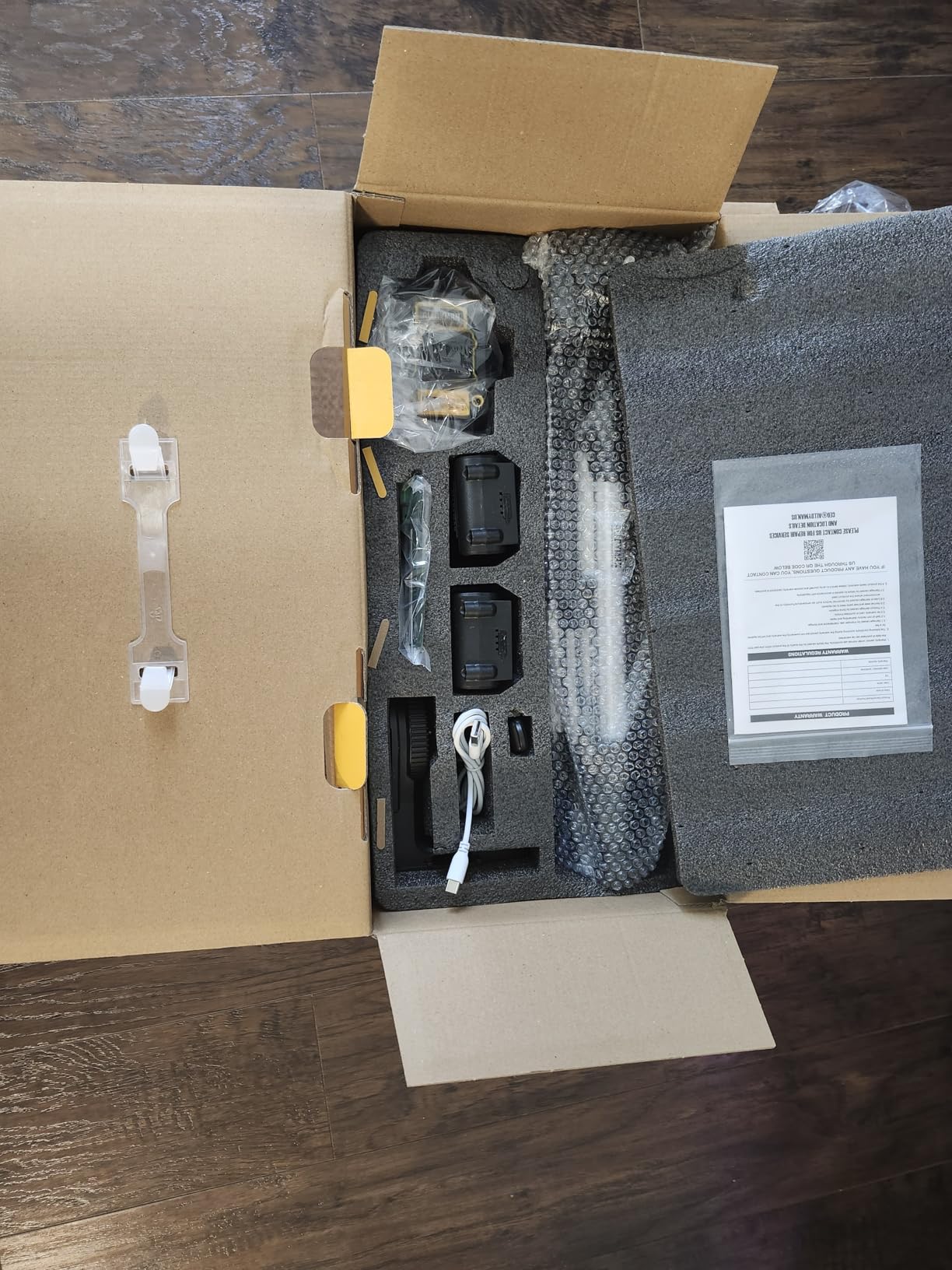

The box also includes a 37.5 inch tripod, a 360-degree magnetic swivel stand, a remote control, a target plate and a Type-C charger. For a buyer who wants full 360 coverage with nothing else to purchase, that is a complete package.

Pulse mode extends the working range to 150 ft when paired with a laser receiver, though that receiver is not part of the kit, so treat that figure as an upgrade rather than a starting point.

Best value in full 360 coverage

Large rooms, main-floor renovations and anyone who wants to stop repositioning the laser halfway through every wall. Twelve hours of combined runtime and a bundled tripod make it practical for a long project immediately out of the box.

If your job is entirely indoors and you want the most lines for the least outlay, this is the one.

What the review spread tells you

It sits at 4.3 with the largest share of 1-star reviews in this group, so expect more inconsistency than the higher-rated units. The persistent out-of-level beep is irritating in a shared indoor space and only goes away in manual mode, the battery has to be pressed firmly into the body to make contact, and no dust or water resistance rating is published, which makes it a poor choice for a shower.

How to Use a Cross-Line Laser Level for Tile Work in Five Steps

1. Plan your reference lines before you mount anything. Decide where the level course and the plumb line need to sit, and mark the walls with a pencil at roughly waist height. These pencil marks are your fallback reference if the laser gets knocked.
2. Mount on a stable tripod, not on the floor. Set the tripod legs wide and check it does not drift when you bump it. A laser that moves an eighth of an inch between checks is worse than no laser at all.
3. Wait for the self-level to settle, then verify. Give it a few seconds. Line the beam against a known straight reference such as a door frame or a countertop edge, and if it does not match, fix the tripod or the surface before you mark anything.
4. Lay the first course and check every three or four tiles. Lift each tile against the beam at both the head and the foot rather than only at one end, since that is where the error shows up first.
5. Only move the laser after you finish a section. When you do reposition it, re-verify against the same known reference before continuing, because a moved laser is a new reference.

If the beam washes out in direct sunlight, a laser detector extends the usable range considerably. Plan for that on patio and outdoor work rather than hoping a green beam carries into full sun.

One more habit pays for itself: verify calibration against a known straight edge before the job and again after, so you know whether a drifting line came from the surface or the tool.

How to Choose a Cross Line Laser Level for Tile

Green beam or red beam

Green beams are rated anywhere from about 2x to 4x brighter than red at the same distance, depending on the manufacturer, and the practical effect is clear on a wet wall or a bright interior. Red beams cost less and last longer on AA batteries, so for an enclosed bathroom or a shaded room a red unit such as the DEWALT DW088K is perfectly adequate. If you have a sunlit room or large windows, spend the difference on green.

Accuracy spec and what tile actually needs

Accuracy is quoted as a fraction of an inch at a distance. The tightest figure here is 1/9 inch at 33 ft on the Huepar and Takamine, while the DEWALT sits at about 1/8 inch at 30 ft and the Bosch at 5/16 inch at 30 ft. For a standard tile and grout gap, anything at or under 1/8 inch at 30 ft will hold a straight line. The looser Bosch spec is workable, you just check more often.

Cross line, 3×360, 4×360 or a laser square

A two-line cross line is right for a single wall or one floor. Three 360 planes cover a whole room without repositioning, which pays off on multi-wall bathrooms and open floors. Four 360 planes with 16 lines add the low floor beam and ceiling references that large-format porcelain work needs. A laser square is a different tool: it projects a fixed 90-degree square for short spans and short-format tile, and it is usually cheaper, but it cannot level a floor.

IP rating for wet areas

IP54 covers dust and splashing water from any direction, which is the minimum we would want in a shower or tub surround. IP55, as on the Bosch GLL50-20G, adds protection against closer water jets. Contractors consistently prefer sealed housings in wet rooms because cheaper porous plastic absorbs moisture over time and the tool drifts. If the tool has no published rating at all, keep it away from the shower.

Mounting and the tripod question

You need a 1/4-20 thread at minimum, and 5/8-11 on the bracket if you want to use a heavy contractor tripod. Bundled tripods are the most common complaint in budget kits: the SKIL tripod tops out at 3-1/2 ft and forum users routinely plan to buy a separate contractor tripod instead of trusting what is in the box. On magnetic mounting, test on the surface you actually have, because strong magnets on steel studs are useless on painted drywall.

Power source and runtime

Removable AA batteries, as on the DEWALT and Bosch, give you a spare-pack strategy and no charging downtime. Built-in rechargeable packs, as on the Huepar, Klein, IKOVWUK and Alloyman, run longer per charge and avoid proprietary packs in some cases, but they cannot be swapped while mounted. For a weekend shower job, roughly 6 hours of runtime is enough; for a multi-day floor, 8 to 12 hours is worth paying for.

If you are cutting a lot of backsplash material alongside the tiling, our best tile cutters for backsplash projects guide covers the cutting side of the job.

Frequently Asked Questions

Final Verdict: Which Cross Line Laser Level for Tile Work

The DEWALT DW088K is the best cross line laser level for tile work in 2026 for most people. It self-levels almost instantly, holds about 1/8 inch accuracy at 30 ft, mounts anywhere thanks to its integrated magnets, and shrugs off drops and moisture with an IP54 rating and a 1 meter drop rating.

Move up to the Huepar HM03CG when you are tiling more than one wall or want a green beam indoors, to the Bosch GLL50-20G when the work is in a shower, and to the Takamine GM160 when you are laying large-format porcelain and need the half-inch floor line. If you are covering a lot of ground on a budget, the PREXISO gives you a bright green cross line and a rechargeable battery without the extras.

Whichever you choose, verify the beam against a known straight edge before the first tile goes down, and check every few rows. That habit, more than the spec sheet, is what keeps the far wall in line with the near one.
