Most machines advertised as CNC engravers for aluminum are sold on bed size and screen size, which tells you almost nothing about the cut. What decides whether an aluminum job ends with crisp lettering or a torn, smeared mess is rigidity, spindle power and the tooling you feed it. We went through the specs, review counts and owner reports for eleven desktop and mid-size machines so you can pick against real numbers instead of marketing copy.
The short version: yes, a CNC router can engrave aluminum. The machine removes material with a rotating cutter rather than melting it, which is why the finished mark is deep, tactile and burr-free compared with a laser. It also means the cutter has to actually bite into metal, and that is where most cheap machines fall short.
Before the picks, one disambiguation that keeps coming up in the search results for this topic. A fiber laser is faster for flat marking on bare and anodized aluminum, needs no fixturing and produces almost no swarf. A CNC mill cuts deeper, works on thick plate, handles three-dimensional relief and uses the same machine you already own for wood, acrylic and plastics. If your work is serial numbers and flat tags in one pass, look at laser marking instead. If it is engraved plates, pockets, reliefs or anything with depth, this list is the right one.
One more note on material prep. Before any of these machines touches a plate, the workpiece wants to be flat, clean and marked out. If you are building the fixture or the frame around the job, our guide to TIG welders for aluminum covers the joinery side of aluminum work that often pairs with CNC finishing.
Table of Contents
Top 3 CNC Engravers for Aluminum Right Now in 2026
Genmitsu 4040-PRO
- 435 x 400 x 80mm work area
- Lead screw driven on all axes
- Reinforced hybrid spoilboard
- GRBL with silent Toshiba drives
NYMOLABS NBS-6040
- 710W spindle to 30000 RPM
- Linear rails and ball screws on all axes
- 610 x 410 x 120mm work area
- 2.8 inch touchscreen offline controller
Genmitsu PROVerXL 4030
- 400 x 300 x 110mm work area
- 300W spindle with DeWalt drop-in adapter
- Limit switches and Z probe included
- Expandable to larger frames
The Genmitsu 4040-PRO takes the top spot because it pairs screw and linear rail drives on every axis with a spoilboard built to resist sagging under metal, and it does it with the review history to back the result. The NYMOLABS NBS-6040 pairs linear rails and ball screws on all three axes with a 710W spindle that runs to 30000 RPM across a 610 x 410mm bed, but its review base is still small. The PROVerXL 4030 is the most direct way into a screw-driven platform with the safety hardware already fitted.
11 Best CNC Engravers for Aluminum (October 2026)
| Product | Specs | Action |
|---|---|---|
| Genmitsu 4040-PRO CNC Router |
|
Check Latest Price |
| NYMOLABS NBS-6040 CNC Router |
|
Check Latest Price |
 Genmitsu 3030-PROVer Ultra |
|
Check Latest Price |
| Genmitsu PROVerXL 4030 |
|
Check Latest Price |
 SainSmart Genmitsu 4040-PRO MAX |
|
Check Latest Price |
 Twotrees TTC450 Pro |
|
Check Latest Price |
 FoxAlien Masuter Pro |
|
Check Latest Price |
 FoxAlien Masuter 3S |
|
Check Latest Price |

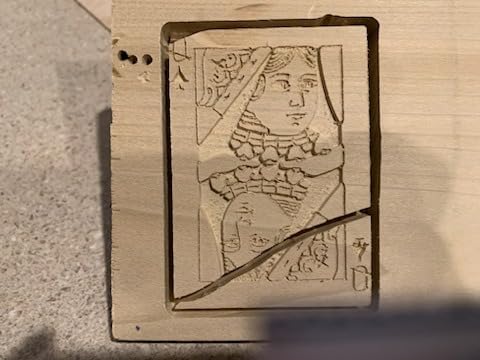

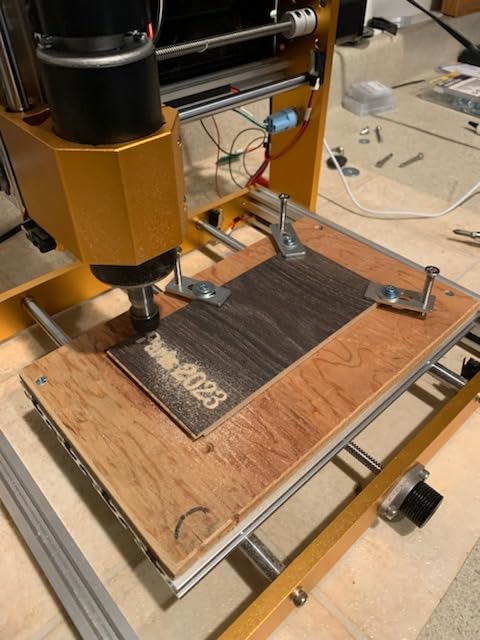

 LUNYEE 3018 PRO MAX |
|
Check Latest Price |
 FoxAlien XE-PRO |
|
Check Latest Price |

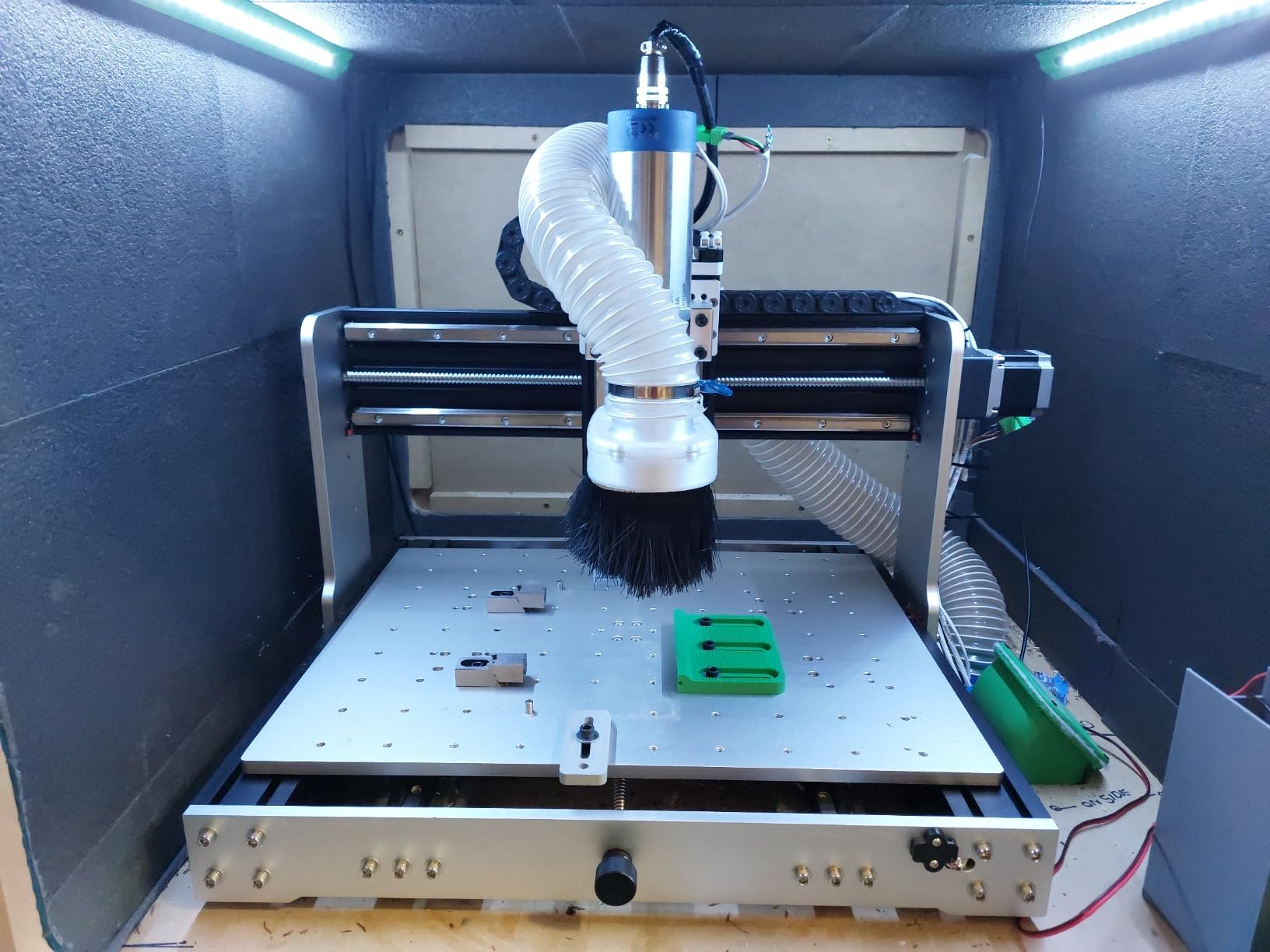

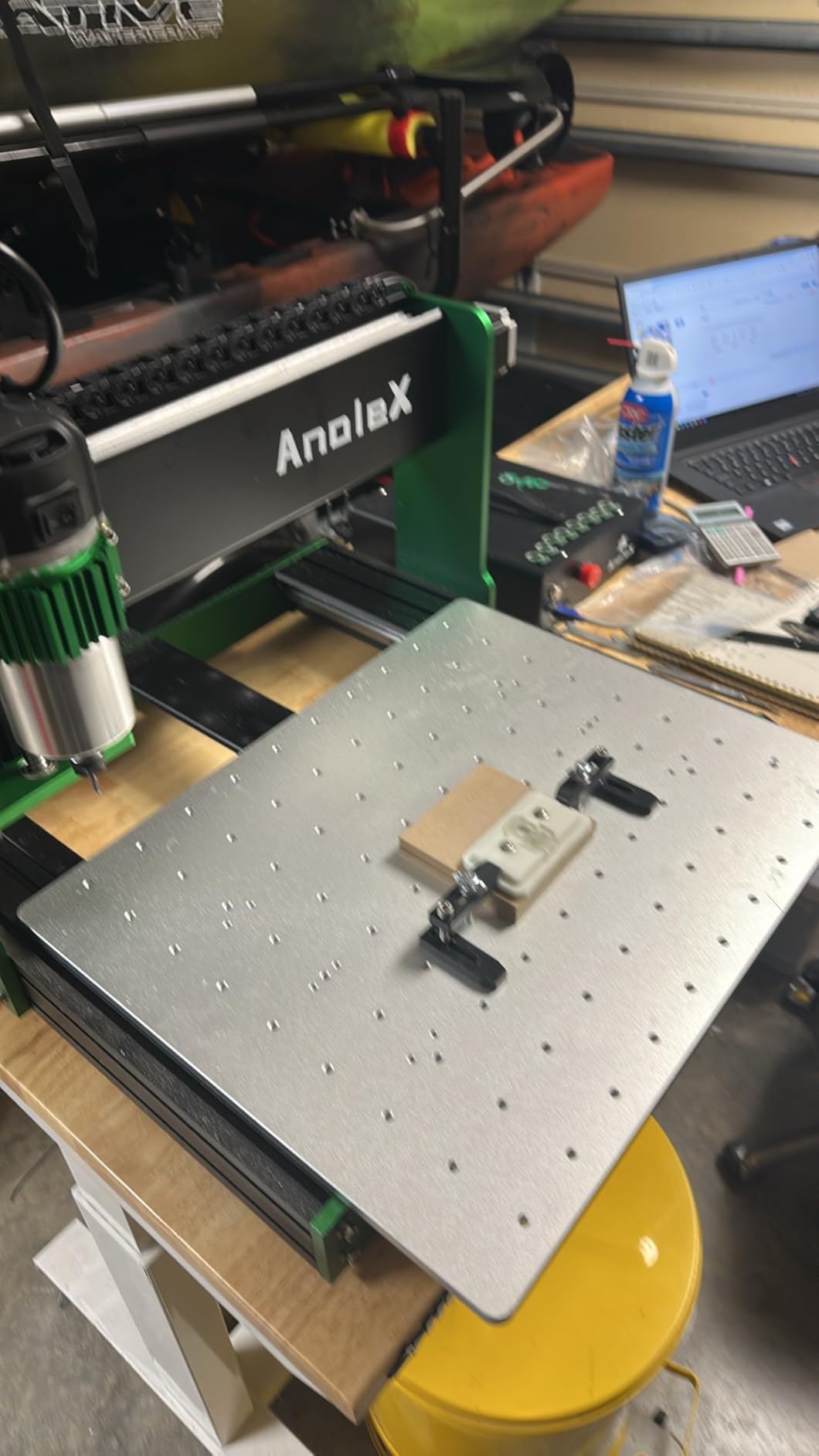

 AnoleX 4030-Evo Ultra 2 |
|
Check Latest Price |
Every machine listed here shares one design decision that matters more than any other spec: an all-metal frame with screw or rail drives rather than plastic-bodied kits with belt drives. On aluminum, a belt drive that stretches under load shows up as a wandering cut and a dulled tool by the second pass.

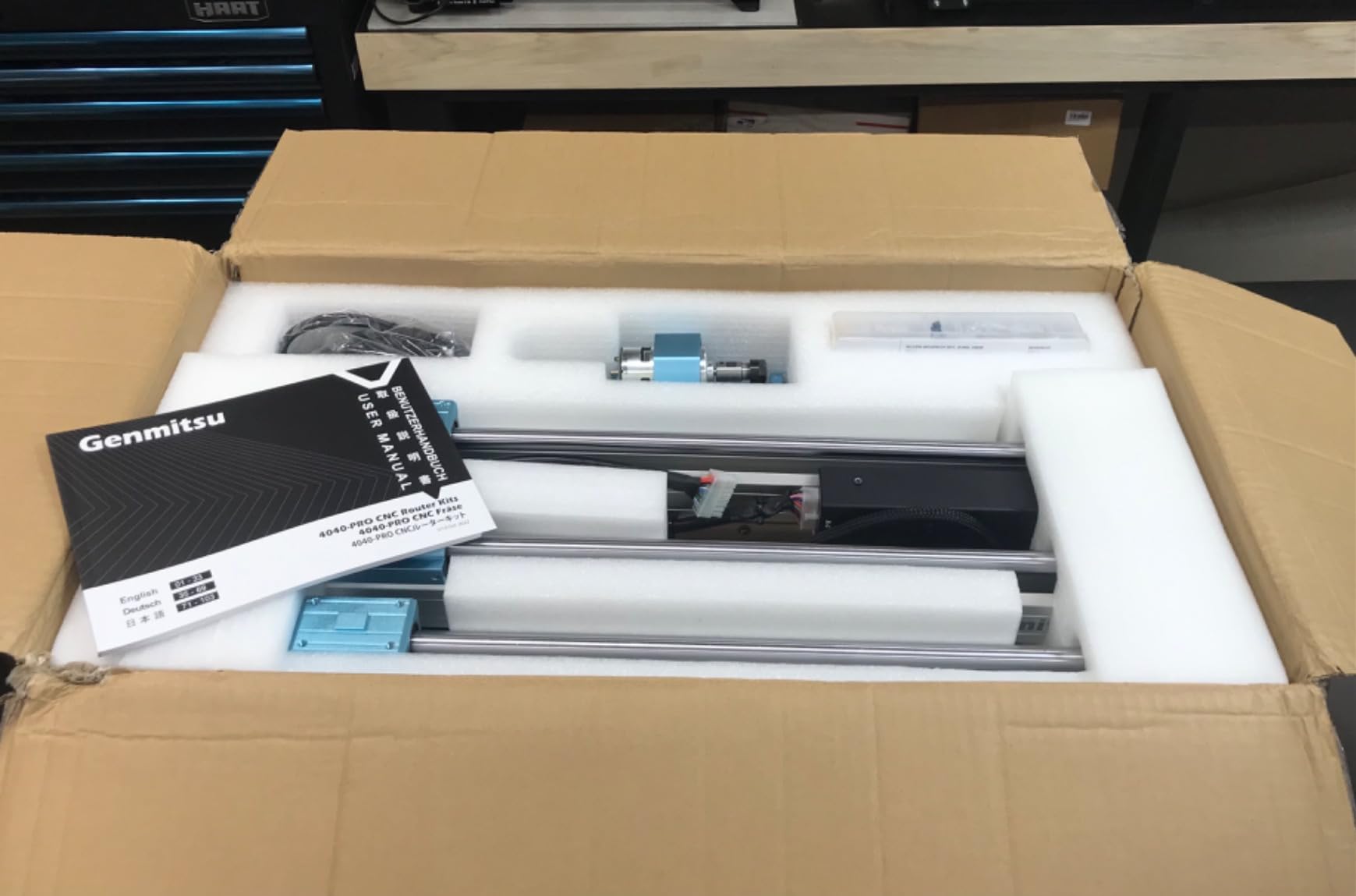

1. Genmitsu 4040-PRO CNC Router – Best Overall for Aluminum
Genmitsu 4040-PRO CNC Router Machine for Metal Acrylic Cutting Milling
435 x 400 x 80mm area
Lead screw driven all axes
GRBL 32-bit control
20.84 kg
Pros
- Lead screw and linear rail motion with very little axis play
- Fast 15 to 30 minute assembly with clear instructions
- Reinforced spoilboard with center aluminum support bar
- Support replaced defective parts quickly and free
Cons
- Included spindle is weak for 1/4 inch shank bits and thick material
- Few adjustments for correcting tram and squaring
- Upgrade parts cost nearly as much as a new machine
This is the machine we keep coming back to because the build decisions are right where cheaper machines get them wrong. Lead screws and linear rails drive all three axes, so there is almost no play in the motion, and the reinforced hybrid spoilboard has a central aluminum support bar that stops the bed dipping under a heavy plate. Assembly takes about 15 to 30 minutes from pre-assembled modules.
Owners report precise, detailed cuts and notably low noise for a machine in this class, and the 435 x 400 x 80mm work area is large enough for a full nameplate or a small fixture plate without a second operation. The 32-bit controller with silent Toshiba drives handles the moves cleanly.
The honest weakness is the included spindle. It tops out near 9000 RPM, which is below what many aluminum engraving bits want, and it struggles with quarter inch shank cutters, deep V-carves and thicker material. That is the single most common complaint in reviews, and it is also the single most common upgrade path. Plan on a higher-RPM spindle before you plan on deep engraving.
The other thing to know is that this frame offers little room for adjustment. There are very few ways to correct tram or squaring, so getting the machine set square on your bench matters more here than on a machine with adjustment knobs. We would pair it with a proper dial indicator and spend an hour on setup rather than an evening.
What aluminum work it handles well
Flat plate engraving is the sweet spot. Lettering, serials, logos and light pocket milling in sheet aluminum up to a few millimetres deep all land cleanly because the screw drives hold position under a constant side load. Owners also use it for wood, acrylic and plastics on the same runs.
For cylindrical work, the 3-pin expansion ports accept air assist, a manual pulse generator and a probe, so adding a rotary attachment later is a matter of hardware rather than a controller change.
Where it falls short
If your parts are thicker than a couple of millimetres, or you plan to run deep V-carving, the included spindle will stall or skip steps before the tool does. Reviewers of budget machines on hobby forums describe exactly this failure, so treat the spindle allowance as part of the purchase rather than an optional extra.
Bundled Candle software is also limited. Budget for a modern CAM package instead of planning around the included one, and note that upgrade components for this frame can cost close to the price of a smaller complete machine.

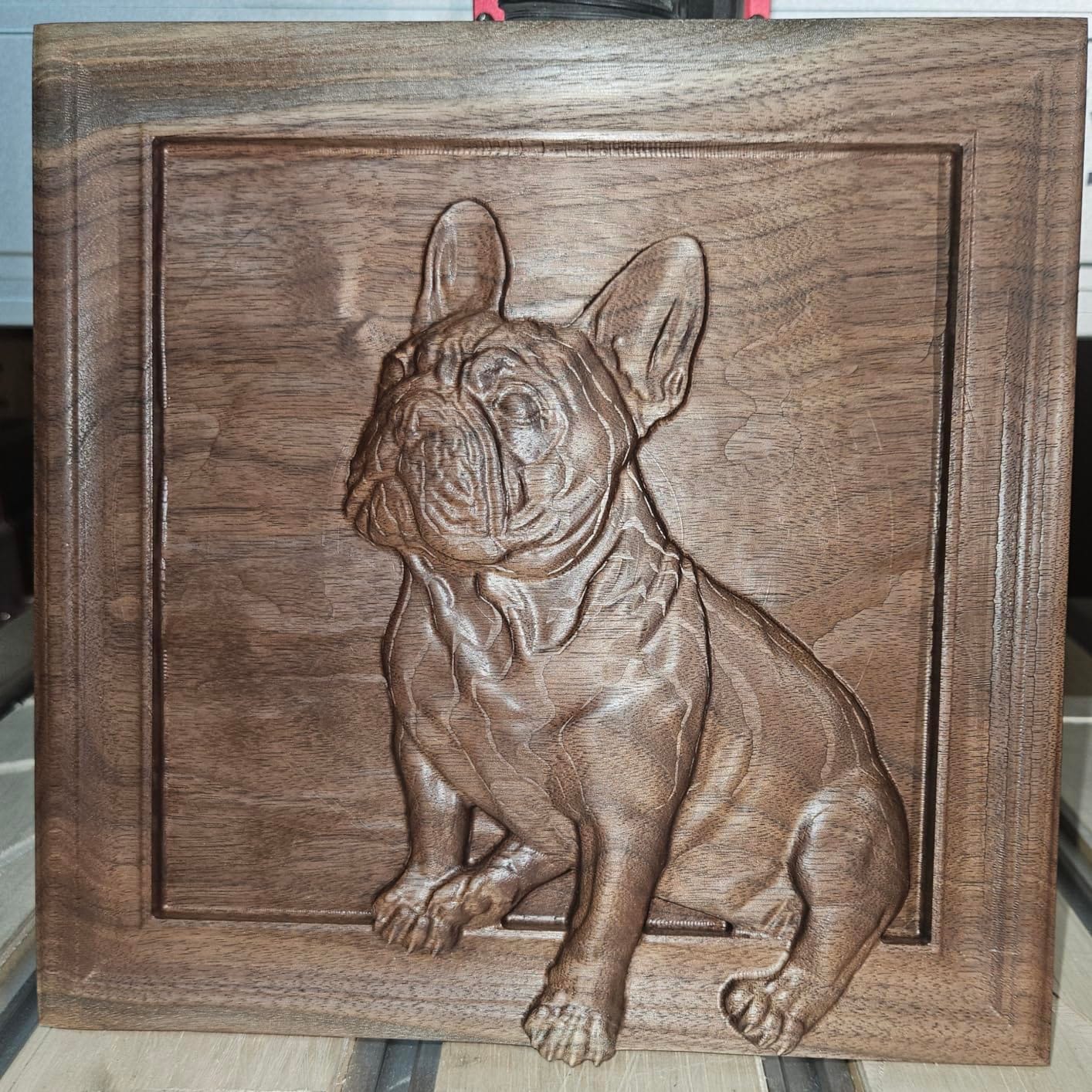

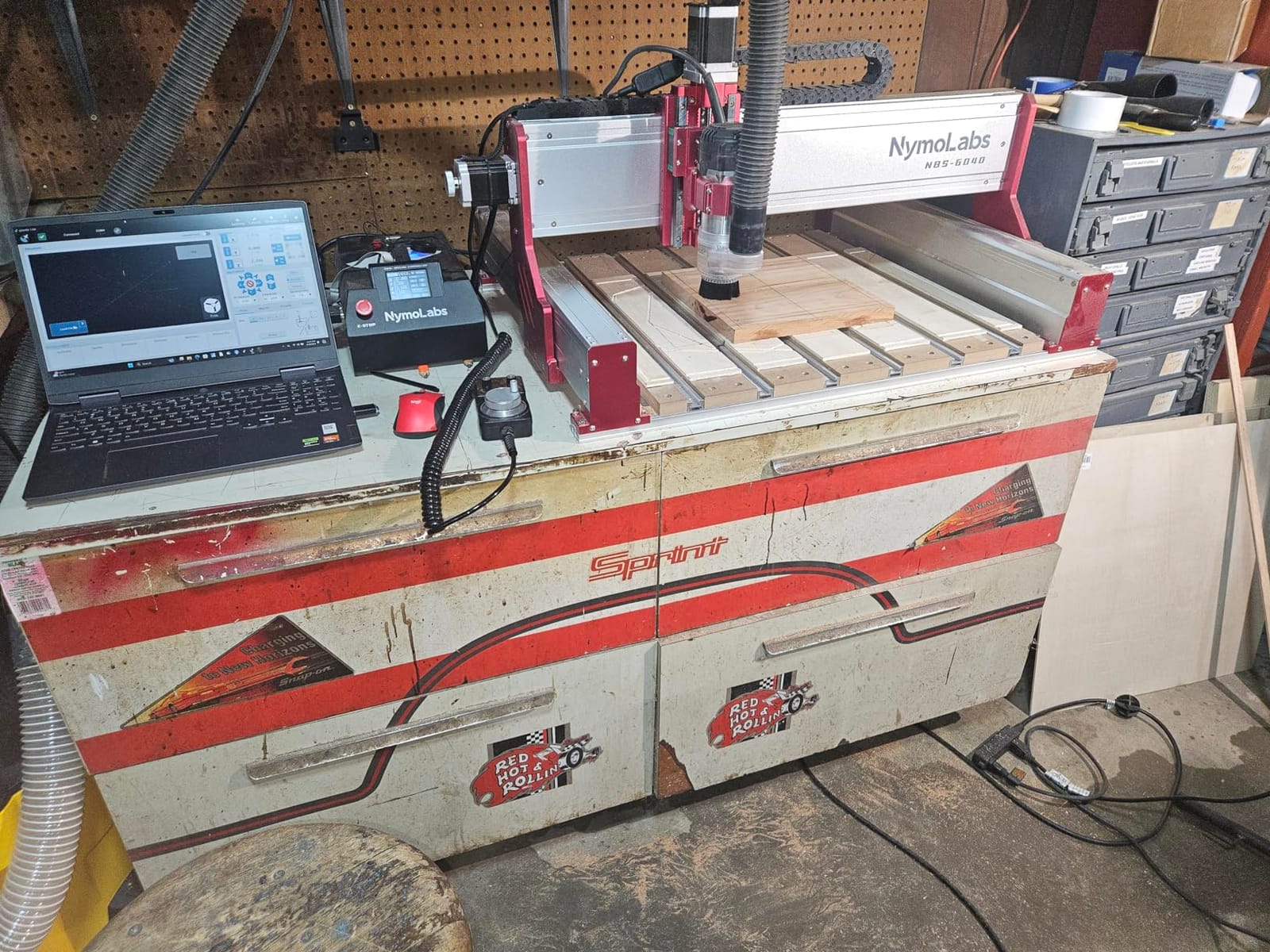

2. NYMOLABS NBS-6040 CNC Router – Best Rigidity Specifications
NymoLabs NBS-6040 CNC Router Machine, 710W Spindle for Wood Acrylic & Metal
610 x 410 x 120mm area
710W spindle to 30000 RPM
Rails and ball screws
GRBL v1.1
Pros
- Very rigid mid-size frame with virtually no gantry play
- 710W spindle with soft start and constant current drive
- Owners cut 170 aluminum channel parts accurately
- Fast 20 minute assembly
- Support replaced a faulty spindle and cord quickly
Cons
- No quarter inch collet included out of the box
- Small offline touchscreen
- Spindle failures after a few months reported by some
The NBS-6040 has among the most serious motion hardware on this list. Linear rails and ball screws run on all three axes, the 710W trim router spindle adjusts from 7000 to 30000 RPM with soft start, and the 32-bit controller pushes up to 80 kHz pulse frequency on open-source Grbl v1.1 firmware.
One owner used it to produce 170 aluminum U-channel parts and reported results more precise than a drill press setup. That is the kind of repeatability you want for small batch runs where every part has to match. Installation takes roughly 20 minutes and the 610 x 410 x 120mm work area gives real room for fixtures.
Reviewers describe it as a premium mid-size machine with an 82 percent five-star share, and the comments about build quality and accuracy are consistent. Support response is singled out as a strength, with faulty spindles and power cords replaced quickly.
The gaps are accessory-level rather than structural. A quarter inch collet is not included, the 2.8-inch offline touchscreen is small for some workflows, and offline operation runs from microSD rather than a USB stick. A few owners report spindle failures after a few months of light use, so keep the mounting hardware ready.
Why it suits production aluminum work
Ball screw drives and a spindle that reaches 30000 RPM are the combination you want when material removal is the bottleneck. At 610 x 410 x 120mm you can lay out a whole batch of small parts on one spoilboard and let the machine run unattended for a while.
Expansion ports cover a 4th axis rotary, a manual pulse generator, a Z probe, air assist, lighting and a dust boot, so the machine can grow into cylindrical engraving without a control board change.
What to buy alongside it
Get a proper collet set before the first cut rather than after a crushed bit. The ER11 range covers 1 to 8mm plus quarter inch and eighth inch, but the quarter inch collet itself is a separate purchase.
Plan on dust extraction from day one. Aluminum chips are light and get everywhere, and the frame is heavy enough that moving it to a different room is not a realistic answer.

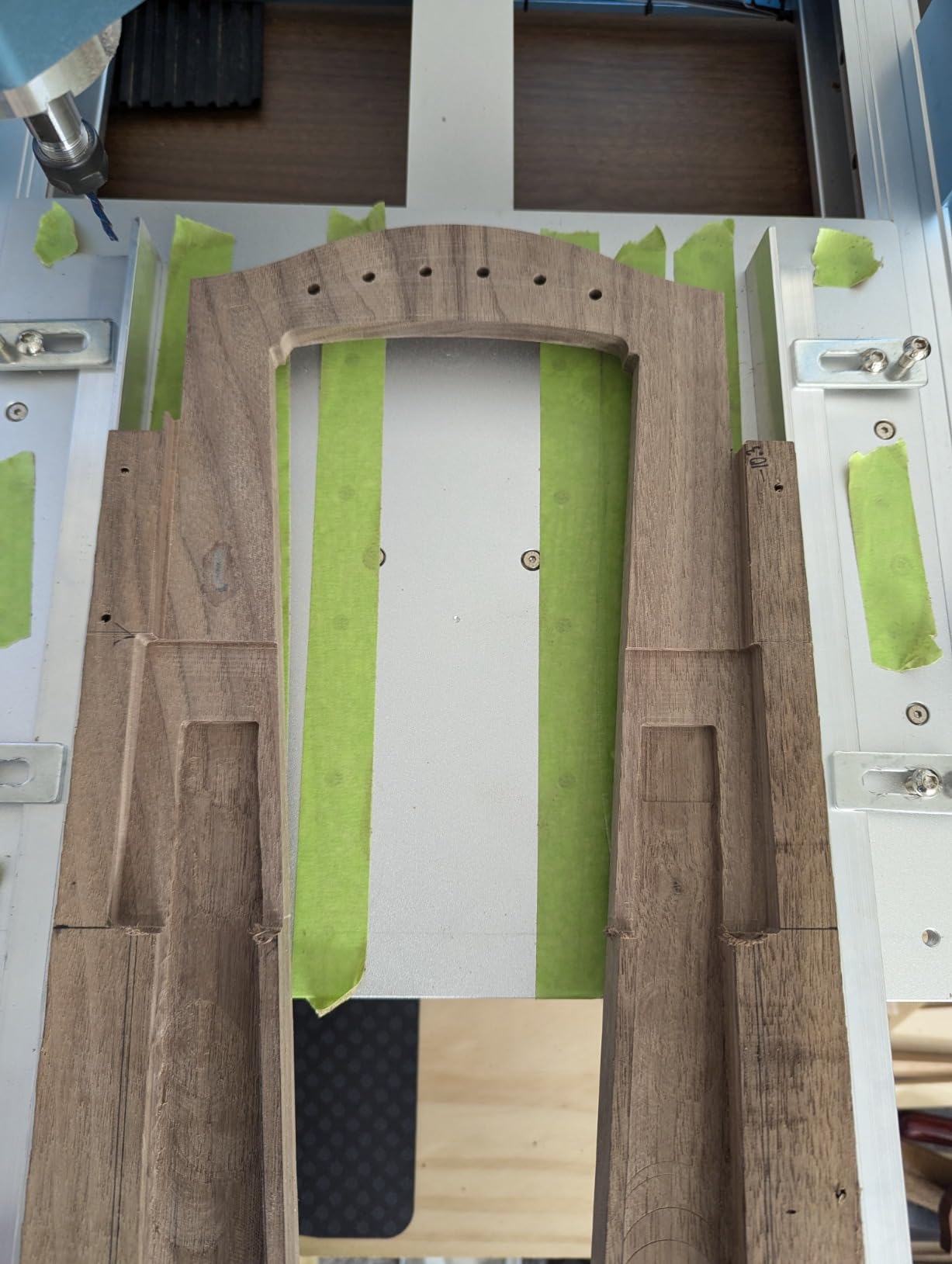

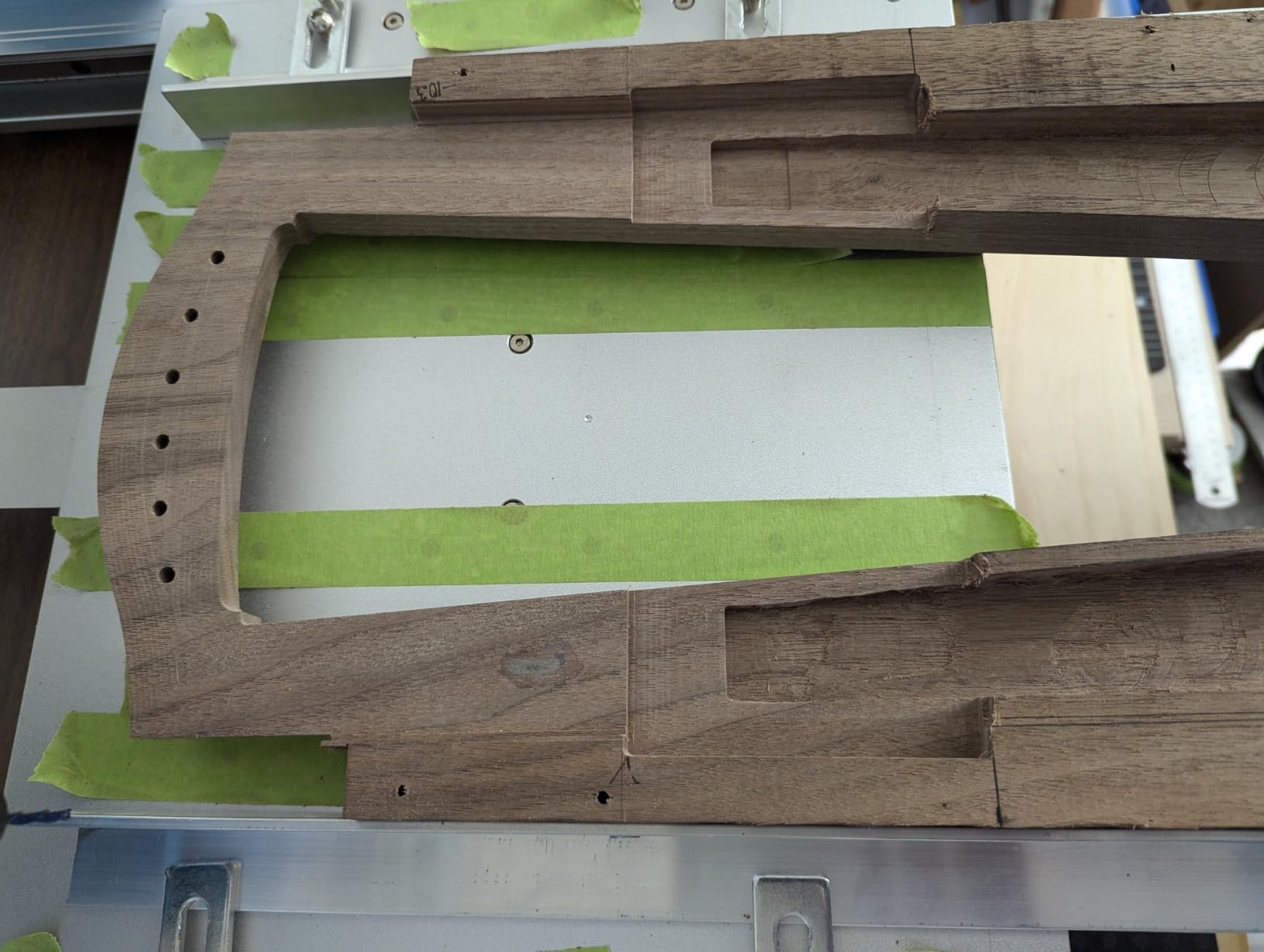

3. Genmitsu 3030-PROVer Ultra – Best for Small Aluminum Parts
Genmitsu 3030-PROVer Ultra CNC Router Machine for Metal, All Metal CNC Engraver with Powerful 710W Spindle, ±0.03mm High Precision, Dual Linear Guides & Ball Screws, for Aluminum & Acrylic Engraving
710W digital spindle
HG15 rails and ball screws
All metal chassis
Stated plus or minus 0.03mm
Pros
- Rigid heavy build that resists vibration
- One owner measured accuracy within 0.01mm over 100mm
- Cuts 6061-T6 aluminum out of the box
- Quick assembly of about 30 minutes
Cons
- Offline controller lacks coordinate readout and Z probe function
- Limit switches can be fouled by metal chips
- Included spindle still limiting for serious metal work
This is the compact option for detailed small parts, watch dials, knife handles and medallions. The all-metal chassis with high torque stepper motors and HG15 dual linear rails plus 1204 ball screws on every axis gives it a solid feel, and one owner measured accuracy within 0.01mm over a 100mm span.
Buyers report it machining 6061-T6 aluminum out of the box, and with a router upgrade it handles mild steel too. The 710W digital spindle shows real RPM on the display, and dust-protected X and Y axes keep the drive hardware cleaner than most machines in this class. Assembly takes about half an hour from two pre-assembled modules.
The most cited drawbacks are controller software quirks rather than mechanical ones. The ARM GRBL controller firmware reports button pins that do not exist, which breaks compatibility with some G-code senders such as bCNC, and the offline controller lacks a coordinate readout and Z probe function.
Metal chips are the practical hazard here. Limit switches can be fouled by chips and halt a cut mid job, and the cooling airflow scatters chips across the work area. Budget for a brush or a chip vacuum before long aluminum sessions.
Where it beats the bigger machines
It stores. A 300mm class machine fits on a bench that a 4000-series frame will not, and a compact footprint means you can put a shield or enclosure around it for chip control, which is close to impossible with a 30-inch frame.
For serial numbers, dial markings and small medallions, the work area is not the constraint. Detail quality is, and this machine delivers it.
What it will not do
It will not replace a mid-size machine for plate work. The work area is small, and while the drives are solid, the included spindle is still limiting for serious metal removal once you stop engraving shallow lines.
Software compatibility needs checking before you commit. If your workflow depends on a specific sender such as bCNC, test it early rather than discovering the mismatch after your first cut.

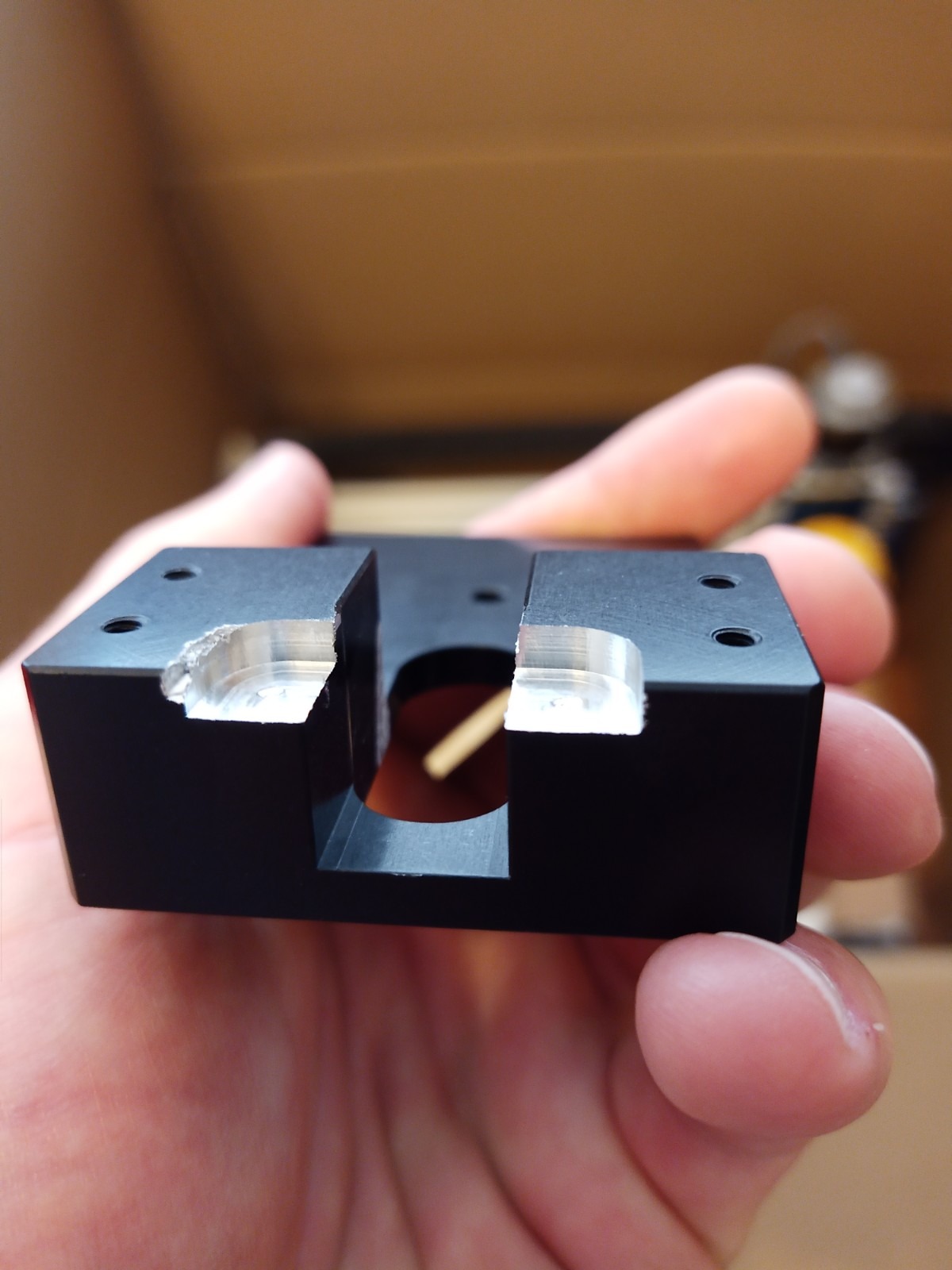

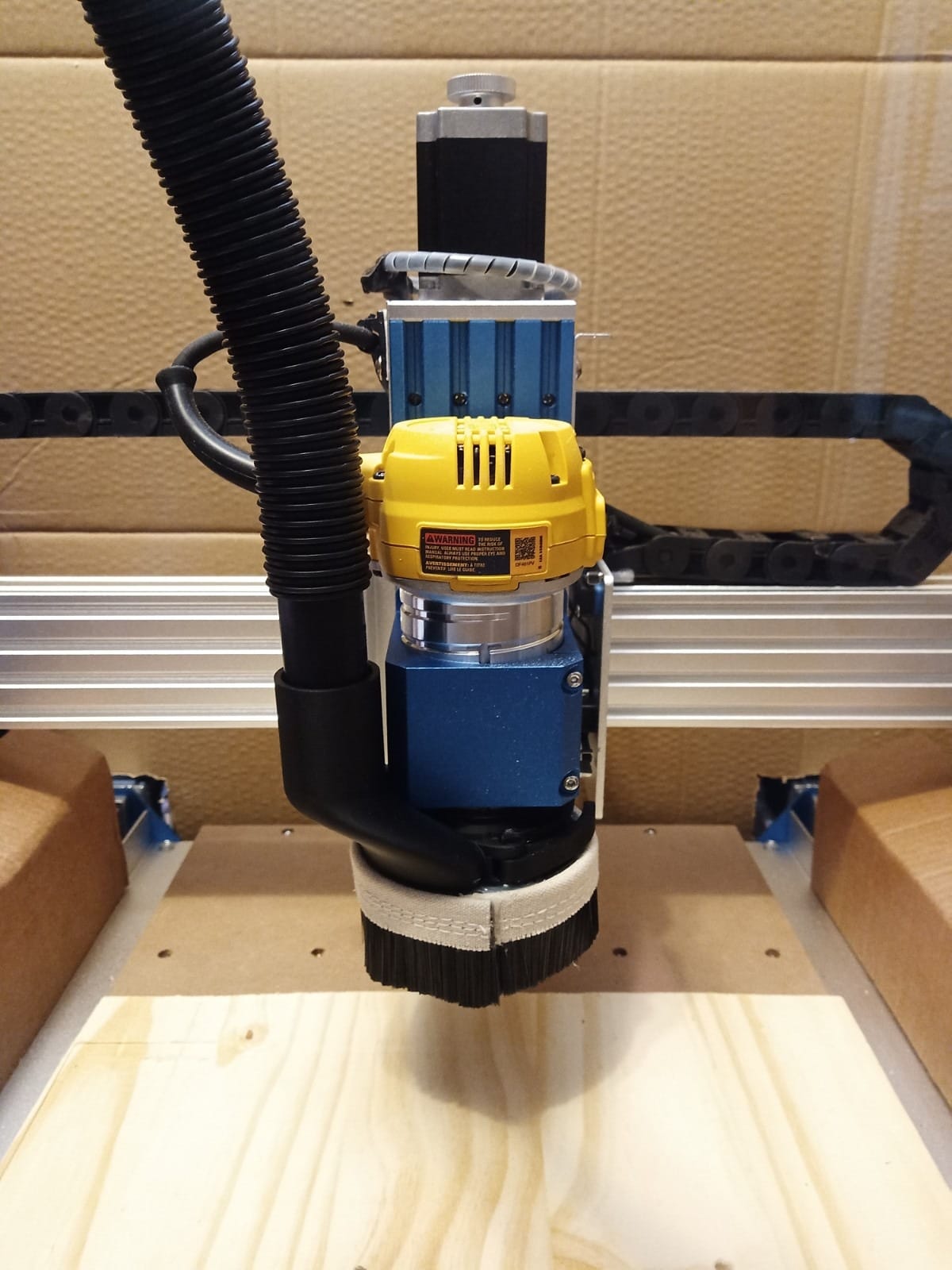

4. Genmitsu PROVerXL 4030 – Best Value
Genmitsu PROVerXL 4030 CNC Router Machine for Wood & Metal
400 x 300 x 110mm area
300W spindle
C beam frame with lead screws
31 kg
Pros
- Limit switches emergency stop speed control and Z probe all included
- Rigid lead screw platform with dual Y screws
- Expandable to 24 inch and 40 inch frames
- Largest review base of the Genmitsu platforms
Cons
- 300W spindle limits heavy cutting and deep passes
- Bundled Candle software is limited
- Wiring of the optical Z drive is a known complexity
With 525 reviews behind it, the PROVerXL 4030 is one of the most established platforms here, and owners consistently point to the same strengths: a rigid C-beam frame with lead screw drive, dual Y-axis screws for stability, and optical Z-axis drive. All the safety and convenience hardware arrives fitted, including limit switches, an emergency stop, speed control and a Z probe.
That hardware bundle matters on aluminum. A Z probe is what lets you set depth on an uneven plate without guessing, and having it in the box removes a weekend of wiring. Pre-assembled modules cut assembly effort substantially, and the platform expands to 600 x 600mm and then 1000 x 1000mm frames if you outgrow it.
The 400 x 300 x 110mm work area gives more Z clearance than most machines at this size, which helps when the plate is thick. A 3-month Carveco Maker subscription is included for CAM, though the bundled Candle software is limited compared with current options.
At 31 kg it is a serious piece of equipment, not a toy. The honest limitation is the 300W spindle, which means shallow passes and slower feeds on anything dense. Reviewers who push harder than that tend to be the ones asking for a different machine, not a different bit.
Who should buy this one
It suits a maker who wants a screw-driven platform with every accessory included and no assembly wiring project. That combination is rarer than it should be in this price band, and it is why the review base is so deep.
The upgrade path is the second argument. Frames grow to 24-inch and 40-inch sizes, so a plate job today does not force a new machine next year.
Where you will feel the limits
Deep pocket milling and thick plate are outside what the included spindle will do comfortably. Aluminum engraving at shallow depth is fine; heavy removal is not.
Some owners find the optical Z-axis drive wiring fiddly, and the Candle workflow feels dated next to newer senders. If you already know your CAM software, that is a small issue. If you are learning from scratch, it adds friction.

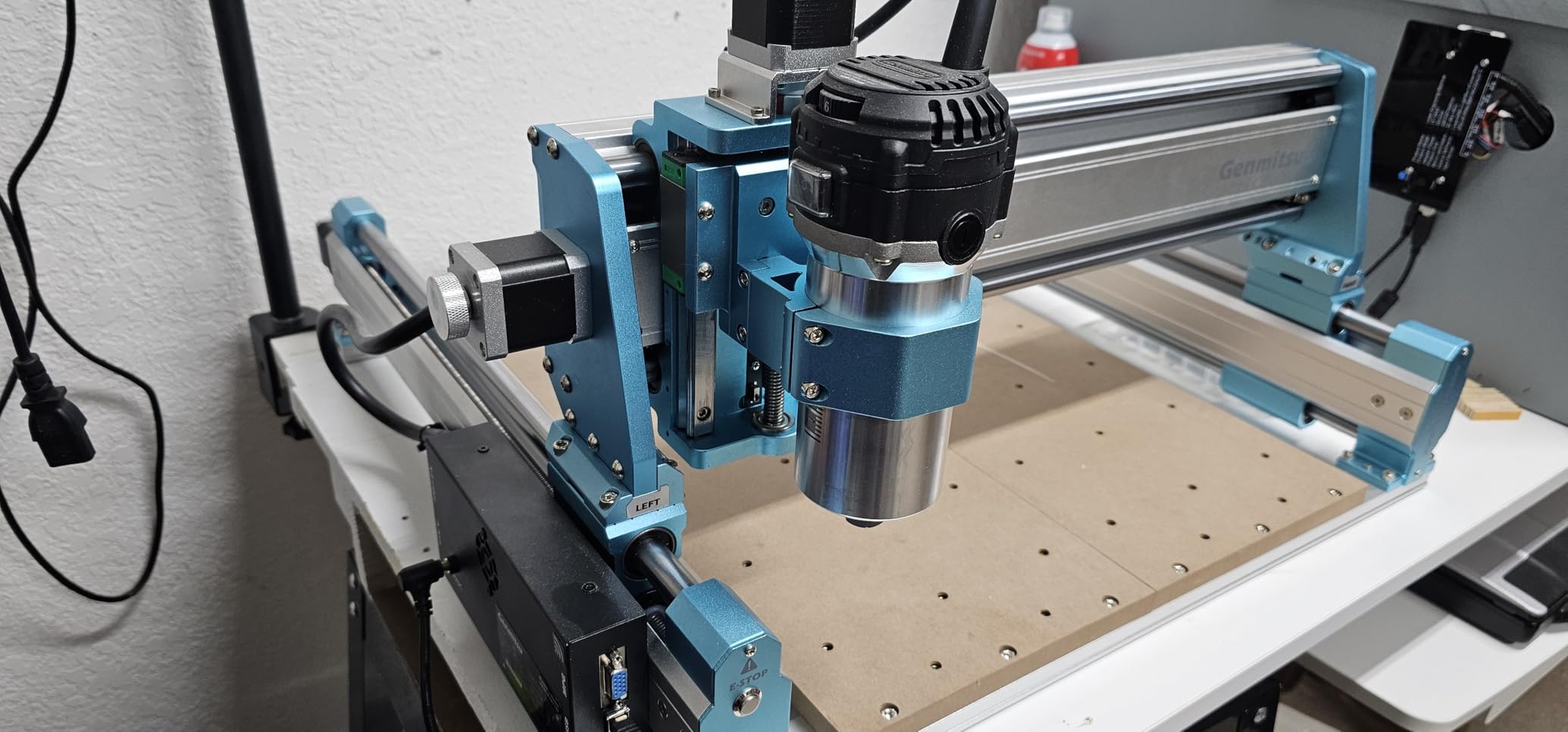

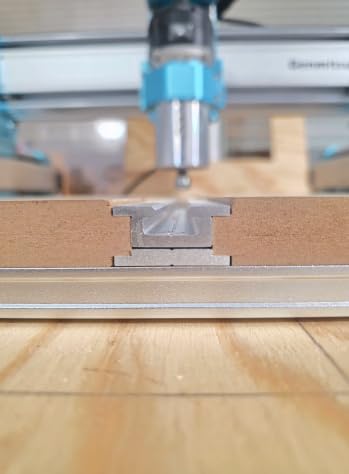

5. SainSmart Genmitsu 4040-PRO MAX – Best for Tall Workpieces
SainSmart Genmitsu 4040-PRO MAX CNC Router with 710W Trimmer
410 x 405 x 77mm area
710W trim router spindle
Linear guideways on X and Z
100mm pass height
Pros
- Around 0.01mm accuracy after calibration with minimal backlash
- 710W spindle is smooth for the class
- Mostly pre-assembled modules with tools included
- Support replaced a high runout spindle free
Cons
- Assembly diagrams unclear and base plates can fit backwards
- Chips reach the carriages with little protection
- gSender defaults to grblHAL and can halt the machine
This is the version of the 4040 platform with the pass height raised by more than 40 percent against the base model, at 100mm. That is the whole reason to choose it when your aluminum parts stand up off the bed. Tall nameplates, extruded channels and stacked fixtures become reachable instead of a two-setup job.
Advanced linear guideway structures on the X and Z axes, a 710W digital display trimmer spindle, and a reinforced spoilboard with a central aluminum support bar that doubles as a T-track. Owners report roughly 0.01mm accuracy and minimal backlash after calibration.
The rating sits below the rest of this list for setup reasons rather than performance reasons. The manual diagrams are not clear enough, and base plates can be fitted backwards, which misroutes the X and Y cables. That is a real problem on a machine this size because getting it wrong means a strip-down and re-route.
Chip protection is also thin. Chips reach the carriages and users add their own shields, and the software default trips people up, with gSender opening in grblHAL and halting the machine until switched to grbl.
When the extra height pays off
Any job where the cutter has to travel above the stock. A 100mm pass height means an upright plate, a thicker block or a fixture with clamping in the way can be cut in one setup, which removes the alignment guesswork that ruins repeat parts.
The 410 x 405 x 77mm work area is also usable for flat plate, and the T-track in the center bar gives you somewhere to bolt workholding down.
What to watch out for
Assembly is the weak point. Read the cable routing carefully, confirm the base plate orientation before tightening, and expect to spend the first session calibrating rather than cutting.
Low safety margin on full cut-through operations is another reported issue, with a risk of contacting the bed and T-tracks. Add a sacrificial layer and probe heights carefully when you take a pass all the way through.

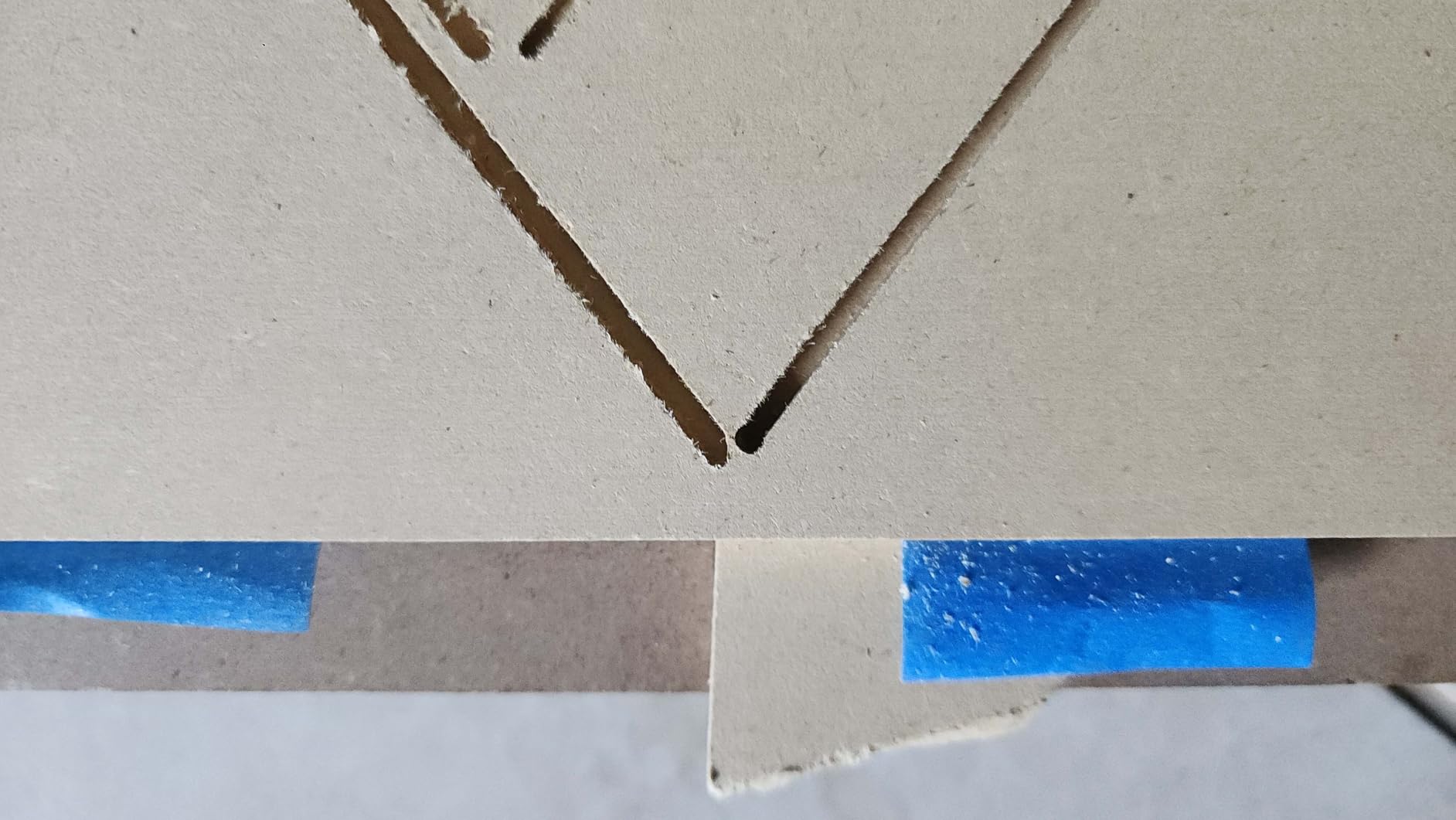

6. Twotrees TTC450 Pro – Best Work Area for the Money
Twotrees TTC450 Pro All-Metal CNC Router Machine with NEMA 57 Stepper Motor
460 x 460 x 80mm area
NEMA 57 Z stepper
3.5 inch touchscreen
All metal frame
Pros
- Unusually large 18 inch square work area
- Integrated 3.5 inch touchscreen makes zeroing easy
- Complete kit with bits clamps test material and spindle
- Works with LightBurn VCarve and Fusion 360
Cons
- 775 brushed spindle is noisy and underpowered for metal
- Quality control reports of missing screws and a faulty coupler
- Support responses reported as slow
At 460 x 460 x 80mm this is the largest square work area in the group, and it comes in a compact frame with an aluminum alloy and stainless steel construction. The NEMA 57 stepper on the Z axis gives positioning accuracy up to 0.0025mm, which is more than enough to hold a lettering pass steady.
The 3.5-inch IPS capacitive touchscreen in the control box is a real convenience for manual jogging and zeroing. Ten cutting tools, six clamping plates, test material and a 775 brushed spindle are all included, so the accessory bill on day one is close to nothing. Ports cover a 4th axis, a laser module and 500W spindle speed control.
For aluminum, the spindle is the limiting factor. The 775 brushed unit is noisy and underpowered, and several owners upgrade to a 550W motor. Treat that as a planned expense rather than a surprise.
Quality control is the other weak spot, with reports of missing M3x5 screws and a faulty Z-axis coupler in the box. One detailed review reported inconsistent cut width on identical programmed lines, which is worth testing for yourself early. Support responses have been described as slow with a difficult return process.
What the big bed buys you
A full sheet of small aluminum nameplates in one pass. Instead of cutting a dozen 60mm plates one at a time on a 300mm machine, you lay out the whole batch, tab the blanks and run it. Tab cutting is where the square format pays off fastest.
The square also suits jigs and fixtures, which lets you bolt a sacrificial board down and machine your own clamping hardware on the same machine.
Where it will frustrate you
Deep aluminum work. The included spindle will not deliver the chip load the frame can physically hold, and the mismatch shows up as a stalled cut or a tool that dulls in seconds.
Post-processing from some CAM tools is reported as awkward, with Z resetting if it is not set alongside X and Y. Check your exporter settings before the first job.
7. FoxAlien Masuter Pro – Most Owner Feedback on Aluminum
FoxAlien Masuter Pro 3-Axis CNC Router Machine, Beginner Hobby Engraving Machine All-Metal Structure for Wood Acrylic MDF Nylon Routing Milling Carving
All aluminum structure
400 x 400 x 60mm area
Linear rail Z axis
13 kg
Pros
- Rigid all aluminum build
- 10 to 15 minute assembly with tagged wiring
- Linear rail Z axis holds very little play
- Manual calibration knobs on all three axes
- Support sends replacement parts free even out of warranty
Cons
- 60W 775 spindle needs slow feeds and shallow passes
- NEMA 17 steppers can lose steps on heavier work
- Spoilboard sags without a center brace
- No dust shoe included
This is the most heavily reviewed machine on the list, with 640 reviews behind it, and the feedback is unusually consistent. Owners describe a rock solid all-aluminum structure that feels noticeably more rigid than earlier versions, a linear rail Z axis that holds very little play despite belt-driven X and Y, and manual calibration knobs on all three axes that make setup forgiving.
Assembly takes 10 to 15 minutes with pre-assembled main parts, a pre-wired harness and tagged connectors. The controller box is dust proof with an emergency stop and home buttons on the front. Two spindle clamps at 52mm and 65mm are included, and 65mm routers, 1.5kW spindles and a 69mm clamp are supported as upgrades.
The reason this machine keeps coming up in owner conversations as a first build is the upgrade path around the frame. Community advice converges on the same point: the frame is worth upgrading, and bolting a bigger router onto a weaker machine tears up aluminum rather than improving the cut. Plan the spindle properly before anything else.
Out of the box the 60W 775 spindle needs slow feeds and shallow passes, and the NEMA 17 steppers can lose steps on heavier work or during tool changes. The unsupported MDF spoilboard sags without a center brace, and no dust shoe is included.
Why the review volume matters here
Aluminum punishes a weak spindle in ways that take a few projects to understand. Having 640 owners reporting back means the failure modes are well documented, and the fixes are known before you hit them.
It also means parts support is proven in practice. Owners report replacement parts sent free even when the machine was out of warranty, which is unusual at this tier.
What you must upgrade
A real spindle. The frame accepts a 1.5kW water-cooled unit, and once that is fitted this machine behaves like a different product for metal work.
A center brace or a proper waste board for the spoilboard, and a dust shoe. Aluminum chips are light and they travel, and a machine with no chip management in a home shop is a dust problem you will inherit.

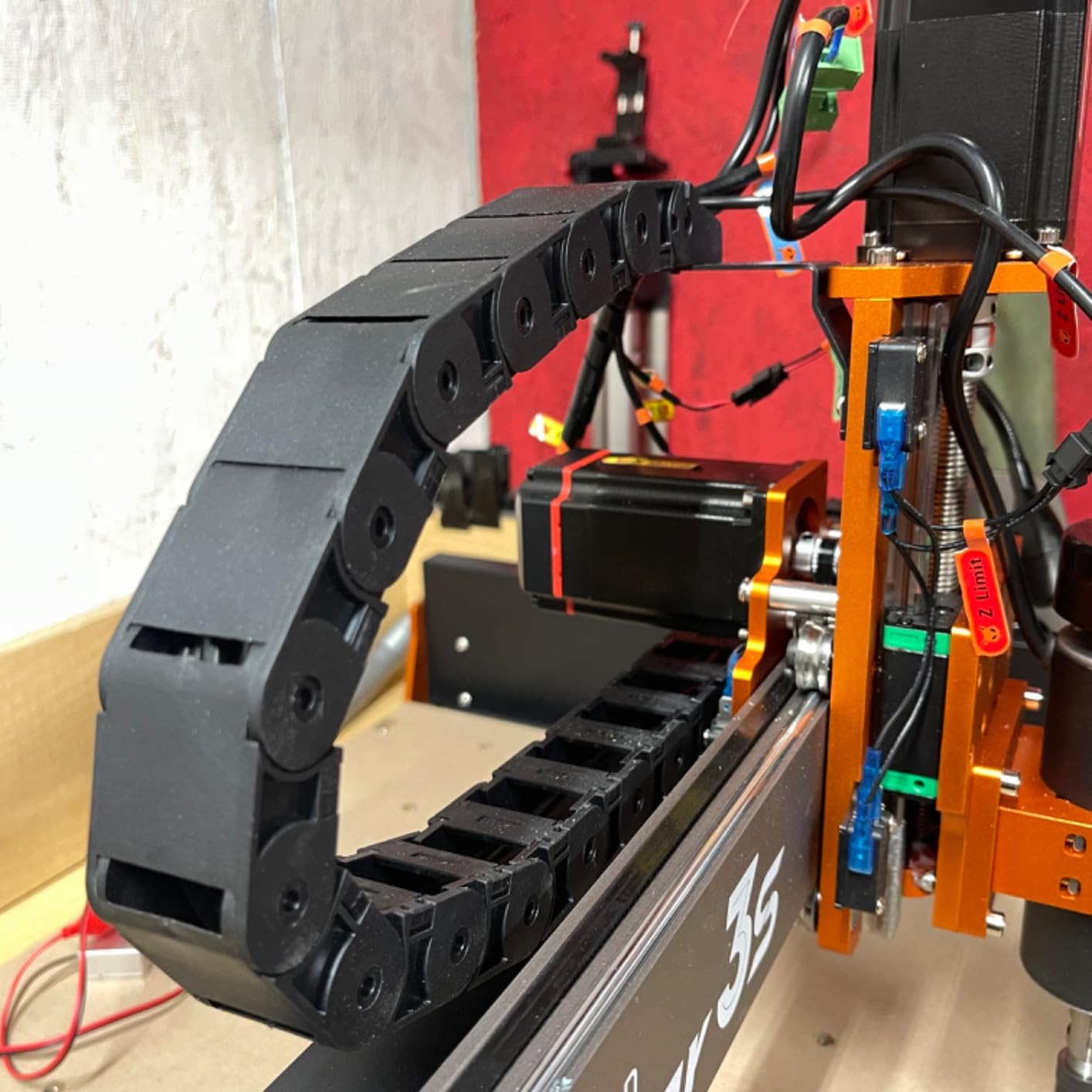

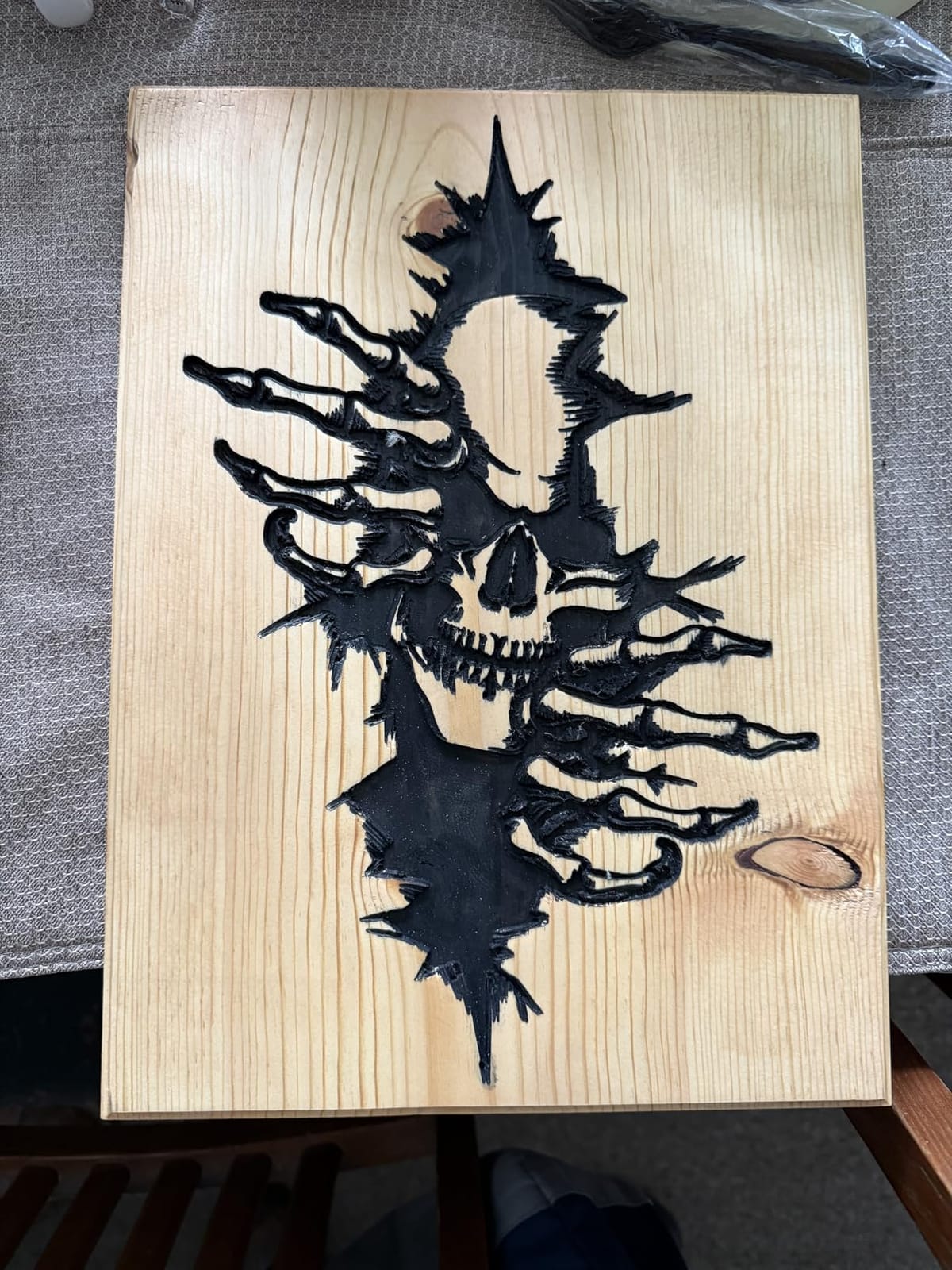

8. FoxAlien Masuter 3S – Best for Closed Loop Motors
FoxAlien Masuter 3S CNC Router Machine with NEMA 23 Closed-Loop Stepper Motor, 400W Spindle 3 Axis Engraving Milling Machine for Wood Acrylic Aluminum Carving Cutting
Closed loop NEMA 23 at 2.2 Nm
400W spindle
400 x 400 x 95mm area
4th axis support
Pros
- Closed loop NEMA 23 motors deliver no lost steps at 2.2 Nm
- Works out of the box with factory aligned geometry
- 400W spindle handles aluminum well
- Plugs into open source toolchains such as FreeCAD and CNCjs
Cons
- Frame screws may loosen under vibration early on
- Controller reliability issues reported on some units
- Support is remote only with no walk in repair path
Closed loop steppers are the meaningful upgrade here. The NEMA23-76 motors produce 2.2 Nm of torque and do not lose steps, which means rapid travel up to 10,000 mm/min without the machine falling behind the tool. On aluminum that translates to faster, smoother moves and no stalling on a deeper pass.
The frame uses reinforced 2360mm extrusions with dual HG-15 linear rails on the Z axis and a T12 lead screw drive, with 0.05mm stated engraving precision. The 400W spindle is rated for wood, plastics and soft metals, and the 400 x 400 x 95mm work area has more vertical room than the previous model.
Built-in support for a 4th axis rotary module makes this a straightforward route to engraving round aluminum tube, tumblers and cans. A 65mm clamp is included so you can move to a trimmer router or a 1.5kW spindle without re-benching the machine.
Owners rate setup at about 30 minutes and praise the quiet operation and solid construction. It runs on open-source toolchains like FreeCAD, F-Engrave and CNCjs, so there is no proprietary lock-in.
When closed loop motors matter
On aluminum, a lost step is a gouge. Open loop steppers lose steps when the load spikes, which happens the moment the cutter finds material it does not expect. Closed loop steppers detect the missed step and correct it, so the cut stays where the file said it would.
It also means faster positioning moves are safe, which shortens cycle time on batch jobs.
What to check on arrival
Check the frame screws after the first few jobs. Vibration early in the life of the machine can loosen them, and a shifted gantry shows up as a cut that suddenly goes out of square.
Support is remote only, by email, with no walk-in repair path, and a minority of machines have needed controller replacement. Heavy single-box packaging also means you need two people or a clear floor plan to move it in.
9. LUNYEE 3018 PRO MAX – Budget Pick
LUNYEE 3018 PRO MAX CNC Machine 500W All-Metal CNC Router Machine 3 Axis Limit Switches & Emergency-Stop with GRBL Offline Control for Cutting Wood Acrylic MDF Plastic, Working Area: 300 x 180 x 80mm
500W spindle to 12000 RPM
All metal frame
300 x 180 x 80mm area
13 kg
Pros
- 500W spindle is unusually strong for a 3018 class machine
- All metal frame with no plastic structural parts
- 80mm Z travel
- Manual handwheels on all three axes
- Offline control with software preinstalled on USB
Cons
- Small work area limits project size
- Entry level accuracy compared with 4000 series machines
- Z rigidity drops with deeper cuts on the light frame
- Bundled software is basic
This is the smallest machine here, and the 500W spindle is the reason it can handle aluminum at all. Most 3018-class machines ship with a much weaker motor, and owners single this one out as unusually capable for its size. The all-metal reinforced aluminum profile frame has no plastic structural parts.
Z-axis travel of 80mm is the longest among standard 3018 models, six limit switches and an emergency stop give decent baseline safety, and manual handwheels on X, Y and Z make zeroing straightforward. It cuts aluminum and copper as well as wood and plastics.
The trade-off is the work area at 300 x 180 x 80mm. That is enough for a nameplate, a small dial or a batch of tags, and nothing more. Accuracy and rigidity are entry level compared with the 4000-series machines here, and Z-axis rigidity degrades with deeper cuts on the light frame.
Bundled software is basic, and experienced users move to Candle, UGS or Carbide Create quickly. The 12mm optical axis upgrade is sold separately.
When a 3018 is the right call
When the work is small, frequent and shallow. Serial tags, small medallions, keycaps and knife handle patterns all fit the bed, and shallow engraving is exactly the operation the frame can hold.
At 13 kg it is also the easiest machine here to move between a garage and a spare room, which matters more than the spec sheet when you are sharing a floor with people.
When to step up instead
When your parts exceed the bed, when you need plate thicker than a few millimetres, or when the aluminum finish has to match a second part exactly. None of those are spindle problems, and a better spindle will not fix them.
Treat this machine as a learning platform for aluminum rather than a production machine.
10. FoxAlien XE-PRO – Best for Precision and Future Upgrades
FoxAlien CNC Router Machine XE-PRO with Ball Screws, 400W Spindle 3-Axis Engraving Milling Machine for Wood Aluminum Cutting Upgradable to Linear Rails
1204 ball screws on all axes
Closed loop NEMA 23 steppers
400W spindle
38.46 kg
Pros
- Ball screws on all axes reduce backlash for cleaner finish
- Closed loop NEMA 23 steppers run fast quiet and skip free
- Sturdy aluminum build holds rigidity in deep or fast cuts
- Three spindle clamp sizes for router or larger spindle
Cons
- No design or control software included
- Spindle speed set by a physical potentiometer
- No built in coolant or rotary axis support
The XE-PRO packs ball screws and closed loop steppers into a frame that weighs 38.46 kg. It carries 1204 ball screws on the X, Y and Z axes, dual linear rails on the Z axis, and four closed loop NEMA 23 steppers that reach 5000 mm/min without losing a step. At 38.46 kg it is a heavy frame that resists the vibration that blurs an engraving.
Three spindle clamps at 52mm, 65mm and 69mm mean you can swap between a trim router, the included 400W spindle and a larger unit as your work changes. Assembly takes 25 to 30 minutes and homing is repeatable straight out of the box. An offline controller removes the tethered computer entirely.
Owners consistently treat it as unusually capable for a hobby-class desktop machine, and the upgrade path is designed in. XY rails can be added to turn belt or screw drives into linear rail motion, which is the single biggest rigidity improvement available to a machine in this class.
Two practical frictions. No design or control software comes with it, so plan for a CAM package in your budget, and spindle speed is set by a physical potentiometer rather than software, which is fiddly when you are changing RPM constantly between operations.
Why ball screws matter for engraving
Engraving is a shallow, slow, high-detail operation, which is exactly where backlash shows. Ball screws on all three axes keep the cutter in the same place on the return pass as on the cutting pass, so the walls of a letter stay parallel instead of tapering.
That is the difference between a mark that looks stamped and one that looks routed.
What it will not do
There is no built-in coolant control and no rotary axis support on the included board, so both require added hardware. The included 400W spindle is weak and slow for demanding work, and a small number of machines have needed ball carrier or motherboard replacement early on.
Check the axis set screws and stepper adapter rods on arrival. It is a two minute check that prevents a week of chasing a cut that will not hold square.
11. AnoleX 4030-Evo Ultra 2 – Best for Wireless Control
AnoleX CNC Router Machine 4030-Evo Ultra 2, All-Metal XYZ Axis Dual Steel Linear Guides & Ball Screws with 800W Trim Router for Metal Aluminum Brass Wood Acrylic PCB
HGH-15 rails and ball screws
800W router to 24000 RPM
Grbl ESP32 web UI
0.02mm on 6061
Pros
- Dual linear rails and ball screws on every axis
- Stated cutting accuracy up to plus or minus 0.02mm on 6061 aluminum
- 800W trim router with ER11 collet to 24000 RPM
- WiFi web UI plus reprogrammable macro button
- Support replaced a wire at no cost
Cons
- Web GUI has noticeable control delay and connectivity problems
- Limit switches are not detected individually
- Collet taper runout can make quarter inch bits sit at an angle
This machine runs the most modern control architecture on the list. A Grbl ESP32 board with a 32-bit MCU and an ESP3D web UI lets you drive the machine from a PC, phone or tablet with no USB cable, and the programmable macro button defaults to homing but can be remapped to pause, stop or run a file from an SD card.
The mechanicals back that up. HGH-15 dual linear rails and 1204 ball screws with a dual-bearing design run on every axis, and the manufacturer states repeatability of plus or minus 0.005mm with actual cutting accuracy up to plus or minus 0.02mm on 6061 aluminum. The included 800W trim router reaches 24000 RPM in six speeds, and the vertical clearance is generous compared with most machines at this size.
Owners report running quarter inch endmills through aluminum without losing steps, and support is described as responsive and solution oriented. The board also supports M07 and M08 coolant output.
The criticisms are software and firmware related rather than mechanical. The web UI carries substantial control delay and has connectivity problems from some Windows setups, limit switches are not detected individually and do not register when jogging manually, and the emergency stop button is delicate and can lose zero position.
Where it earns its place
Any job where you need to watch the cut from another part of the room, or where a tethered USB cable across a bench is a trip hazard. Running a long aluminum program from a phone on a shelf is genuinely useful for batch work.
The M07 and M08 coolant outputs and the generous Z clearance also make it a sensible choice for pockets rather than only for surface engraving.
What to sort out first
The collet is the real-world issue for aluminum. Taper runout can make quarter inch bits sit at an angle and spin eccentric, and the collet will not accept a quarter inch bit seated past its end. Inspect the collet taper and shank fit before trusting a fine engraving pass.
Set up a wired fallback for the web UI from day one, and note that VCarve users may need file extension or post-processor adjustments.
How to Choose a CNC Engraver for Aluminum
Rigidity decides the finish, not the brand
Rigidity is the single factor that separates a clean aluminum engraving from a smeared one. A frame that deflects under side load lets the cutter rub rather than cut, which generates heat, dulls the tool and leaves a fuzzy edge. Look for an all-metal frame, screw or ball screw drives, and linear rails on at least the Z axis.
You can feel rigidity before you buy. Push hard against the gantry and feel for give. A machine that moves under hand pressure will move more under a cutting load.
Spindle power is the hard rule
For engraving and light pocketing in sheet aluminum, a 400W to 500W spindle is workable with slow feeds and shallow passes. For deeper cuts, thick plate or full material removal, most of the community treats a 1.5kW water-cooled spindle as the minimum, and that is the number to plan your budget around.
Match spindle speed to the tool too. Bits specified for 12000 RPM and above will not perform on a spindle that tops out below that, which is the most common complaint about otherwise good machines here.
What type of CNC bit is best for cutting aluminum?
Solid carbide, and specifically a single-flute or two-flute design for engraving. Single-flute cutters leave a wider chip gap, which is what lets chips clear the flutes instead of being recut. Carbide holds its edge far longer in aluminum than HSS and resists the gum-up that ruins steel tooling.
Carbide center drills are also worth keeping in the drawer. Owners describe crisp clean lines and no burrs with a number 0 or number 00 center drill, and they are among the cheapest tools available. Do not use wood bits on aluminum; they dull almost immediately and the surface finish suffers.
Drive system: stepper vs servo and what it changes
Open loop NEMA 17 steppers are adequate for engraving shallow marks and nothing more. NEMA 23 steppers give more torque for heavier work, and closed loop NEMA 23 steppers detect and correct missed steps, which protects a deep cut from a sudden gouge.
Servo systems are more expensive and rarely appear in this class. For most home aluminum engraving, closed loop steppers on all three axes are the sensible stopping point, and they are what several of the picks here use.
Why is my CNC router not cutting deep enough?
Most shallow-cut complaints come down to the same short list. The spindle is underpowered for the tool and the depth of cut. The feed rate is too high, so the cutter rubs instead of cutting. The workpiece is vibrating because the clamp is loose or the spoilboard is unsupported. The bit is dull or the wrong type. Or the Z axis is losing steps under load and the machine simply thinks it is cutting deeper than it is.
Check them in that order. Cutting aluminum deeper than the machine can hold is the fastest way to stall a stepper and dim a workpiece.
Coolant, lubrication and chip evacuation
Aluminum generates heat fast because it conducts heat away from the cutting edge as chips form. A coolant system is not optional for sustained metal work, and a flood or mist setup is far better than nothing. Misting oil is the minimum acceptable option, and some of the machines here have M07 and M08 outputs for exactly this.
Chip evacuation matters just as much. Aluminum chips are light, they get carried back into the flutes, and a tool that re-cuts its own chips dulls fast and can break. Air assist helps more than most buyers expect. Do not let chips accumulate against limit switches either, because a jammed switch halts a cut mid job.
How deep can you engrave before the part is compromised?
Depth is limited by the geometry of the part, not by the machine. On a nameplate, engraving to a small fraction of the plate thickness leaves the part essentially as strong as before, because the remaining section still carries the load. Engraving deeply into a narrow section or a thin wall changes how the stress distributes, and a part that was fine unloaded can crack under handling.
The practical rule is to keep engraving depth well under a quarter of the thinnest section you are cutting through, and to avoid cutting across a whole cross section of anything load-bearing. If you need depth for looks, cut a pocket and let the floor carry the load.
Aluminum alloys change the job
2024 and 3003 are common for nameplates and general sheet work and cut readily. 5052 is a good general-purpose alloy for engraving and cuts smoothly. 6061 is the most widely used machinable alloy and is the standard choice for engraved plates and fixtures. 7075 is stronger and harder to cut, so expect more spindle load and faster tool wear.
Anodized aluminum changes the job again. The surface layer has a different hardness and can chip if the tool is dull, so treat anodized parts as a separate setup with fresh sharp tooling.
Enclosed or open frame for a home shop
Open frames are louder and put chips and dust into the room, and aluminum dust is a respiratory concern worth taking seriously. An enclosure with extraction is close to mandatory if the machine lives in a garage attached to a house.
A smaller machine is easier to enclose, which is a genuine argument for a 300mm class machine over a 460mm one. It also weighs less and moves more easily, so a single room can serve as both machine room and workshop.
Total cost of ownership over a year
The purchase cost is the smallest part of the number. Beyond it you need carbide tooling, a spare spindle or a plan for one, coolant or mist oil, dust extraction, collet sets and consumable cleanup supplies. Add a clamp and workholding solution, because aluminum plate that walks under a cutter wastes the whole cut.
A rough planning figure for a machine you use weekly: allow a few hundred per year above the machine for tooling, fluid and extraction consumables, and keep a spare spindle on the parts list for anything that runs hard. That figure moves with how much metal you actually cut, which is why it is worth stating the assumption rather than pretending there is one true number.
What stepper motor is needed for CNC?
For aluminum engraving specifically, NEMA 23 steppers are the practical minimum on every axis, and closed loop versions are worth the extra cost on the axis that does the most work. NEMA 17 motors are fine for light wood and plastic work but will stall on a deeper aluminum pass.
Torque matters more than speed. A motor that can hold the axis against a cutting load will let you run the tool slowly and correctly, which is what a good aluminum finish requires.
Frequently Asked Questions
What is the best CNC engraving machine for aluminum?
The best CNC engraving machine for aluminum is one with an all-metal frame, lead screw or ball screw drives, linear rails on the Z axis and a spindle of at least 400W for shallow engraving or 1.5kW for deep work. In this roundup the Genmitsu 4040-PRO takes the top spot for its screw-driven axes and large work area, while the NYMOLABS NBS-6040 leads on rigidity and spindle speed.
What type of CNC bit is best for cutting aluminum?
Solid carbide single-flute or two-flute end mills are best for aluminum because the wider chip gap lets chips clear the flutes instead of being recut. Carbide center drills in number 0 and number 00 sizes give crisp clean engraved lines with no burrs and cost very little. Avoid HSS and any wood bit, both of which dull quickly on aluminum.
Is a CNC router better than a laser for aluminum?
A CNC router beats a laser when you need depth, relief, pockets or thick plate, because it removes chips instead of melting the surface and leaves a burr-free tactile mark. A fiber laser wins on flat serial and batch marking because it needs no fixturing and runs fast. Most makers end up owning both, using the CNC for any job with real depth to it.
Why is my CNC router not cutting deep enough?
Check four things in order. The spindle may be underpowered for the tool and depth of cut, the feed rate may be too high so the cutter rubs instead of cutting, the workpiece may be vibrating from a loose clamp or unsupported spoilboard, and the bit may be dull or the wrong type. Also confirm the Z axis is not losing steps under load.
Do I need coolant to CNC aluminum?
Yes, for any sustained metal work. Aluminum carries heat away from the cutting edge as chips form, so a coolant or mist oil setup protects the tool and the workpiece. Some machines here have M07 and M08 outputs for exactly this. Air assist matters too, because chips that stay in the flutes get recut and dull the tool fast.
Conclusion
If you want one machine that handles aluminum properly and does not need rebuilding first, the Genmitsu 4040-PRO is the safest buy: lead screws and linear rails on every axis, a reinforced spoilboard with a center support bar, and the biggest rectangular work area in this group. Budget for a higher-RPM spindle before you plan deep engraving, because that is the upgrade nearly every owner eventually makes.
Push the budget toward the NYMOLABS NBS-6040 if rigidity and spindle speed matter more than cost, or step down to the Genmitsu PROVerXL 4030 if the accessory bundle and the upgrade path are what you are after. However you choose, check the spindle and the tooling before you check anything else on the spec sheet, because those two decide whether the finish looks stamped or looks routed.
